ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION
id092000812200
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
- (2) Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)
- (3) Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)
- (4) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (5) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (6) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (7) Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
- (8) Console cover (See CONSOLE COVER REMOVAL/INSTALLATION.)
- (9) Console (See CONSOLE REMOVAL/INSTALLATION.)
- (10) Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (11) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (12) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (13) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (14) Fuel-filler lid release lever (R.H.D.) (See FUEL-FILLER LID OPENER REMOVAL/INSTALLATION.)
- (15) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (16) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (17) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (18) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
- (19) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
- (20) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
- (21) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (22) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (23) Audio unit (with audio system) (See AUDIO UNIT REMOVAL/INSTALLATION.)
- (24) Car-navigation unit (with car-navigation system) (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)
- (25) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
- (26) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (27) Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
3. Disconnect the front door wiring harness connector (Driver side). (SeeFRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
4. Disconnect the dashboard harness connectors.
5. Remove the brake switch from the brake pedal with the brake switch connector connected. (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
6. Remove the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
7. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
8. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)
9. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)
10. Remove in the dashboard. (See DASHBOARD REMOVAL/INSTALLATION.)

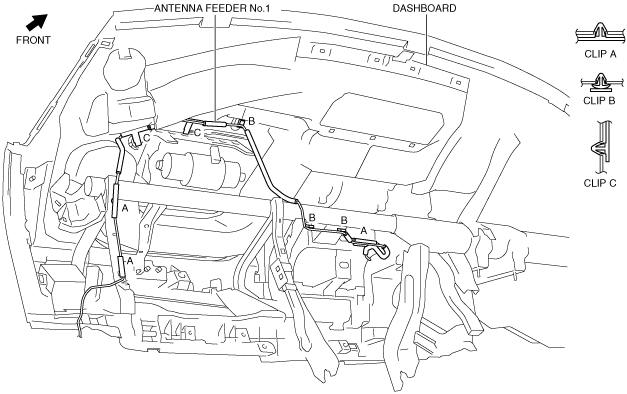

11. Remove in the clip A, B, and C.
12. Remove in the antenna feeder No.1.
13. Install in the reverse order of removal.
L.H.D.
R.H.D.
