ELECTRONIC 4WD CONTROL SYSTEM LOCATION INDEX

id031800805200

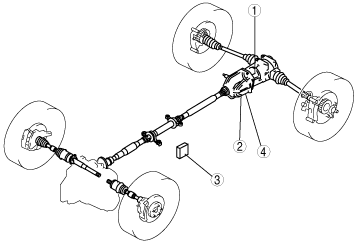

ac9uuw00001405

1	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION)
2	4WD solenoid (See 4WD SOLENOID INSPECTION)
3	4WD control module (See 4WD CONTROL MODULE INSPECTION) (See 4WD CONTROL MODULE REMOVAL/INSTALLATION)
4	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION) (See COUPLING COMPONENT DISASSEMBLY) (See COUPLING COMPONENT ASSEMBLY)
