DTC B2701 [POWER LIFTGATE (PLG) SYSTEM]
id0902e9380600
|
DTC B2701 |
PLG touch sensor (LH) circuit malfunction |
|---|---|
|
DETECTION CONDITION
|
A short circuit to ground in the PLG touch sensor (LH) continues for 5 min or more
|
|
POSSIBLE CAUSE
|

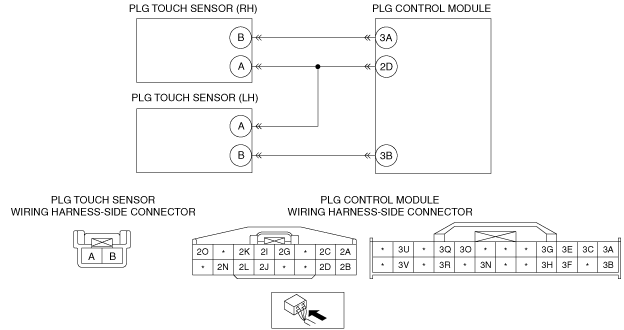

• Short to GND in wiring harness between PLG control module terminal 3B and PLG touch sensor (LH) terminal B
• PLG touch sensor (LH) malfunction
• Obstructions in the detection part
• PLG control module malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT PLG TOUCH SENSOR (LH)
• Inspect the PLG touch sensor (LH).
• Is the PLG touch sensor normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the PLG touch sensor (LH).
Go to Step 3.
|
||
|
2
|
INSPECT WIRING HARNESS BETWEEN PLG CONTROL MODULE AND PLG TOUCH SENSOR (LH)
• Inspect the wiring harness between PLG control module terminal 3B and PLG touch sensor (LH) terminal B for a short circuit to ground system.
• Is the wiring harness normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness.
Go to the next step.
|
||
|
3
|
VERIFY CORRECTION COMPLETED
• Reconnect the disconnected connector.
• Clear the DTC.
• Is DTC B2701 stored after 5 min or more have elapsed?
|
Yes
|
Replace the PLG control module.
|
|
No
|
DTC troubleshooting completed.
|
||
