DTC B267B [POWER LIFTGATE (PLG) SYSTEM]

id0902e9381900

DTC B267B

Full latch switch circuit malfunction

DETECTION CONDITION

A short circuit to the ground system in the wiring harness between the liftgate latch and lock actuator and PLG control module

POSSIBLE CAUSE

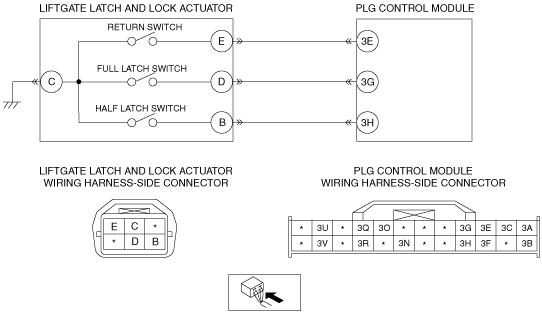

•  Short to GND in wiring harness between PLG control module terminal 3G and liftgate latch and lock actuator terminal D

•  Full latch switch malfunction

•  PLG control module malfunction

DTC B267B	Full latch switch circuit malfunction
DETECTION CONDITION	A short circuit to the ground system in the wiring harness between the liftgate latch and lock actuator and PLG control module
POSSIBLE CAUSE	• Short to GND in wiring harness between PLG control module terminal 3G and liftgate latch and lock actuator terminal D • Full latch switch malfunction • PLG control module malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT WIRING HARNESS BETWEEN PLG CONTROL MODULE AND LIFTGATE LATCH AND LOCK ACTUATOR • Disconnect the PLG control module connector. • Disconnect the liftgate latch and lock actuator connector. • Inspect the wiring harness between PLG control module terminal 3G and liftgate latch and lock actuator terminal D for a short circuit to ground system. • Is the wiring harness normal?	Yes	Replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) Go to the next step.
1		No	Repair or replace the wiring harness. Go to the next step.
2	VERIFY CORRECTION COMPLETED • Reconnect the disconnected connector. • Clear the DTC. • Operate the PLG system. (Close operation) • Is DTC B267B stored?	Yes	Replace the PLG control module. (See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION.)
2		No	DTC troubleshooting completed.
