POWER WINDOW MAIN SWITCH INSPECTION


id091200802000

Note
•  Before proceeding with diagnosis of malfunctioning power windows, ensure the POWER WINDOW INITIALIZATION PROCEDURE has been performed.

Front Side

1.  Measure the voltage at each terminal (other than terminals 1M and 2A).

•  If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under “inspection item(s)” and related wiring harnesses.

2.  Disconnect the negative battery cable.

3.  If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

ac9uuw00000468

Terminal

Signal name

Connected to

Measured condition

Voltage (V)/Continuity

Inspection item (s)

1E
IG 1
METER 10 A fuse
Ignition switch is at ON position
B+
•   Inspect METER 10 A fuse
•  Related wiring harnesses
Ignition switch is at LOCK position
1.0 or less
1F
Power-cut signal
Power window subswitch
Ignition switch at ON and power-cut switch at UNLOCK
B+
•  Power window subswitch(SeePOWER WINDOW SUBSWITCH INSPECTION)
•  Related wiring harnesses
1G
Communication
Power window subswitch
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Power window subswitch (SeePOWER WINDOW SUBSWITCH INSPECTION)
•  Related wiring harnesses
1H
Communication
BCM
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Related wiring harnesses
1I
Close output
Power window motor
While door glass is opening
1.0 or less
•  Power window motor (SeePOWER WINDOW MOTOR INSPECTION.)
•  Related wiring harnesses
While door glass is closing
B+
1K
Open output
Power window motor
While door glass is opening
B+
•  Power window motor (SeePOWER WINDOW MOTOR INSPECTION.)
•  Related wiring harnesses
While door glass is closing
1.0 or less
1M
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harnesses
1N
Power supply
P/W 30 A fuse
Under any condition
B+
•  P/W 30 A fuse
•  Related wiring harnesses
2A
Sensor ground
Power window motor
Under any condition
1.0 or less
•  Power window motor (SeePOWER WINDOW MOTOR INSPECTION.)
•  Related wiring harnesses
2B
Power supply
Power window motor
While IG ON or IG OFF timer works
B+
•  Power window motor (SeePOWER WINDOW MOTOR INSPECTION.)
•  Related wiring harnesses
2C
Pulse 1
Power window motor
Door glass is not in motion
0 or 5.0
•  Power window motor (SeePOWER WINDOW MOTOR INSPECTION.)
•  Related wiring harnesses
Door glass is in motion
Alternates between 0 and 5.0
2D
Pulse 2
Power window motor
Door glass is in motion
Alternates between 0 and 5.0
•  Power window motor (SeePOWER WINDOW MOTOR INSPECTION.)
•  Related wiring harnesses
Door glass is not in motion
0 or 5.0

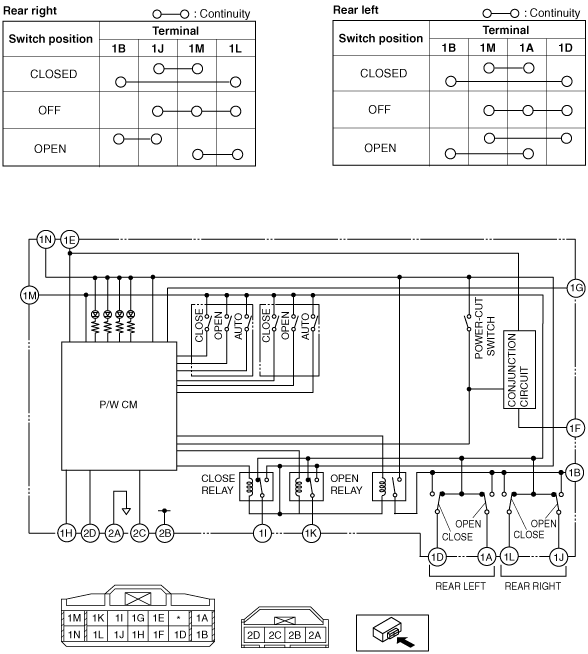

Rear Side

1.  Remove the power window main switch. (SeePOWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

2.  When inspecting the rear, turn the power-cut switch UNLOCK.

3.  Inspect for continuity between the power window main switch terminals.

•  If not as specified, replace the power window main switch.

ac9uuw00000469
