INTERIOR TRIM LOCATION INDEX


id091700805300

ac9uuw00000497

1
Meter hood
2
Decoration panel
3
Dashboard
4
Ventilator grille
5
Center panel
6
Dashboard garnish
7
Side panel
8
Glove compartment
9
Front side trim
10
Dashboard under cover
11
Console cover
12
Console
13
Indicator panel
14
Front console box
15
Console panel
16
Side wall
17
Column cover
18
Lower panel

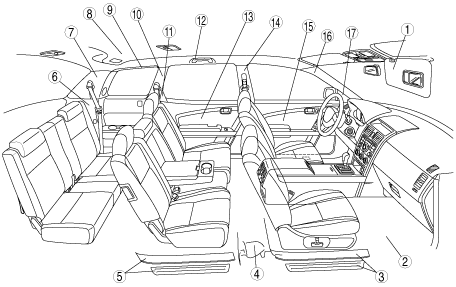

ac9wzw00000640

1
Sunvisor
2
Floor covering
3
Front scuff plate
4
B-pillar lower trim
5
Rear scuff plate
6
Trunk side trim
7
D-pillar trim
8
Headliner
9
Roof side trim
10
C-pillar trim
11
Inner sail garnish
12
Assist handle
13
Rear door trim
14
B-pillar upper trim
15
Front door trim
16
A-pillar trim
17
Inner garnish

ac9uuw00000749

1
Liftgate lower trim
2
Liftgate side trim
3
Liftgate upper trim
4
Seat side box
5
Trunk end trim
6
Trunk box
