B1 BRAKE PISTON COVER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL]

id0517k3331200

1. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AY6A-EL, AY6AX-EL].)

2. Remove the transaxle.

3. Remove the TCM.

ac9uuw00004004

Caution

• Do not touch the terminals.

ac9uuw00001971

4. Inspect the condition of the connector pin of the coupler component (foreign material, bent pins, broken pins) and O-ring after the TCM is removed.

am6xuw00004289

5. Remove the O-ring from the coupler component.

am6xuw00004290

6. Clean the transaxle. (See AUTOMATIC TRANSAXLE CLEANING [AY6A-EL, AY6AX-EL].)

7. Remove the torque converter. (See TORQUE CONVERTER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

8. Remove the stud bolts.

ac9uuw00004121

9. Set the SSTs as shown in the figure.

ac9wzw00002030

10. Install the transaxle to the SSTs.

ac9wzw00002032

• When installing the transaxle to the SSTs, secure the transaxle to the position shown in the figure using a bolt 90 mm {3.5 in } (M12 X 1.25) in length.

11. Remove the oil pipe component and the O-rings.

ac9uuw00004122

12. Refer to the “AUTOMATIC TRANSAXLE DISASSEMBLY/ASSEMBLY PRECAUTION” before disassembling/assembling the transaxle. (See AUTOMATIC TRANSAXLE DISASSEMBLY/ASSEMBLY PRECAUTION [AY6A-EL, AY6AX-EL].)

13. Remove the control valve body cover.

am6xuw00004095

14. Using a plastic hammer, tap the control valve body cover to remove it.

ac9uuw00003980

Caution

• Do not damage the fitting surface of the transaxle case and the control valve body cover.

• Do not deform the control valve body cover.

Note

• Disconnect the solenoid connector according to the following procedure:

i. Insert a precision flathead screwdriver from the backside into the connector as shown in the figure.

ac9uuw00004009

Caution

• Do not damage the solenoid valves and connectors with the flathead screwdriver.

ii. Pry the flathead screwdriver in the direction of the arrow and disconnect the connector.

ac9uuw00004010

Caution

• When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

15. Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

ac9uuw00003983

16. Disconnect the coupler component from the clamp.

ac9uuw00004123

17. Remove the lock plate, and pull out the TFT sensor from the control valve body.

ac9uuw00004012

18. Remove the VSS connector from the solenoid clamp.

ac9uuw00003985

19. Remove the suction cover and the gasket.

ac9uuw00004014

20. Remove the control valve body installation bolts in the order shown in the figure.

ac9uuw00004015

21. Disconnect the manual valve link and remove the control valve body component.

ac9uuw00004016

Caution

• Do not drop the control valve body component.

22. Fix the coupler component with tape to the transaxle case as shown in the figure.

ac9uuw00004388

Note

• Be sure to secure the coupler component with tape so that it will not interfere with the control valve body component.

23. Fix the VSS wiring harness with tape to the transaxle case as shown in the figure.

ac9uuw00004389

Note

• Be sure to secure the VSS with tape so that they will not interfere with the control valve body component.

24. Remove the converter housing. (See CONVERTER HOUSING REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

25. Remove the oil pump component and oil strainer as a single unit. (See OIL PUMP REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

26. Remove the C3 clutch component, front planetary gear component and input shaft.

am6xuw00004200

Note

• In some cases, the input shaft may be detached with the thrust bearing attached.

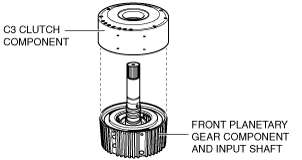

27. Remove the C3 clutch component from the front planetary gear component and input shaft.

am6xuw00004064

Note

• In some cases, the C3 clutch component may be detached with the thrust washer attached.

28. Remove the brake band anchor bolt.

am6xuw00004202

29. Remove the B1 brake band.

am6xuw00004203

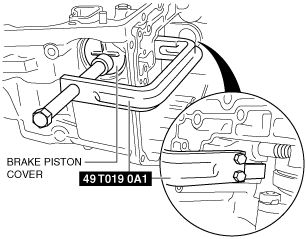

30. Affix the brake piston cover using the SST.

am6xuw00004209

31. Remove the snap ring using snap ring pliers.

ac9uuw00004124

Caution

• The brake piston cover will fly off due to the force of the piston return spring.

32. Remove the brake piston cover, B1 brake piston and the piston return spring.

am6xuw00004204

Caution

• Do not drop the brake piston cover.

• Do not drop the B1 brake piston.

33. Remove the O-rings from the brake piston cover.

ac9uuw00004125

34. Install the front planetary gear component and input shaft to the transaxle case.

ac9uuw00004126

Caution

• If the input shaft is not hold during installation, the thrust washer might be come off.

Note

• Align the spline of the C1 clutch component before installing the front planetary gear component and input shaft.

• Hold the C1 clutch component and install the front planetary gear component while holding the input shaft.

35. Apply ATF to the bushing of the C3 clutch component.

36. Install the C3 clutch component to the transaxle case.

ac9uuw00004127

Note

• Before installing the C3 clutch component, align the spline of the C3 clutch component and the spline of the sun gear input drum.

Note

• Install the C3 clutch component so that it engages with the sun gear input drum as shown in the figure.

am6xuw00004090

37. Install the B1 brake band to the transaxle case.

am6xuw00004208

38. Install the brake band anchor bolt to the transaxle case.

am6xuw00004202

Tightening torque

134—199 N·m {14—20 kgf·m, 99—146 ft·lbf}

39. Apply ATF to the new O-rings.

40. Install the O-rings to the brake piston cover.

ac9uuw00004125

41. Install the piston return spring, B1 brake piston and the brake piston cover to the transaxle case.

am6xuw00004204

42. Press the brake piston cover into the position where the snap ring groove is visible using the SST.

am6xuw00004209

43. Install the snap ring using snap ring pliers.

ac9uuw00004124

44. Install the oil pump component and oil strainer as a single unit. (See OIL PUMP REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

45. Install the converter housing. (See CONVERTER HOUSING REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

46. Connect the manual valve link and install the control valve body component.

ac9uuw00004211

Caution

• When installing the control valve body component, secure the coupler component to the wiring harness clamp.

• Do not pinch the coupler component between the transaxle case and the control valve body component.

47. Temporarily install the control valve body component with the bolts.

ac9uuw00004020

Note

• Aligning the bolt holes, temporarily tighten the bolt by hand.

Bolt length (measured from below the head)

A: 21 mm {0.83 in}

B: 31 mm {1.2 in}

48. Temporarily install the suction cover and a new gasket with the bolts.

ac9uuw00004014

Note

• Aligning the bolt holes, temporarily tighten the bolt by hand.

49. Tighten the bolts in the order shown in the figure.

ac9uuw00004021

Tightening torque

8—12 N·m {82—122 kgf·cm, 71—106 in·lbf}

50. Install the connector of the VSS to the solenoid clamp.

ac9uuw00003985

51. Install the TFT sensor with the lock plate and a bolt to the control valve body component as shown in the figure.

ac9uuw00004012

Tightening torque

6.0—8.0 N·m {62—81 kgf·cm, 54—70 in·lbf}

52. Connect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

ac9uuw00003983

53. Connect the coupler component to the clamps.

ac9uuw00004123

54. Clean sealant and oil off the contact surface of the transaxle case with the control valve body cover and the bolt holes.

ac9uuw00004022

Note

• Completely remove sealant and oil with white gasoline or similar.

55. Clean oil off the contact surface of the new control valve body cover with the transaxle case.

56. Apply sealant to the new control valve body cover as shown in the figure.

am6xuw00004155

57. Install the new control valve body cover with new seal bolts before the applied sealant starts to harden.

am6xuw00004095

Caution

• Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.

Tightening torque

10—15 N·m {102—152 kgf·cm, 89—132 in·lbf}

58. Install the oil pipe component and new O-rings.

ac9uuw00004122

59. Install a new O-ring to the coupler component.

am6xuw00004290

Caution

• Do not apply ATF to the O-ring.

60. Align the transaxle case and coupler component connector.

ac9uuw00003937

61. Be sure to match the position of the TCM marking.

am6xuw00004123

Caution

• Do not turn more than 60° from the marking.

62. Install the TCM.

63. Verify the correct positioning of the TCM and coupler component.

am6xuw00004124

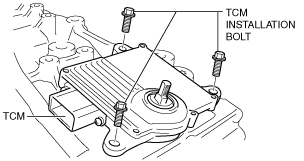

64. Tighten the TCM installation bolts.

ac9uuw00004023

Tightening torque

20—29 N·m {2.1—2.9 kgf·m, 15—21 ft·lbf}

65. Remove the transaxle from the SSTs.

ac9wzw00002031

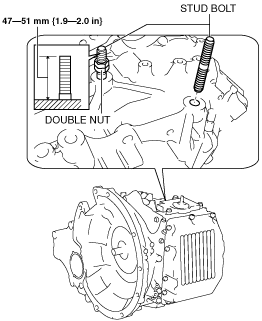

66. Install the stud bolts using double nutted.

ac9uuw00003997

Caution

• Do not repair the threads using a tap or other tools.

• Do not damage the transaxle case.

• Do not overtighten the stud bolts. (The stud bolts should remain protruded from the end of the transaxle case more than 47 mm {1.9 in}.)

• If any of the stud bolts is overtightened, the transaxle case may be damaged (holes in the case may result).

• If the transaxle case is damaged, the transaxle must be replaced.

67. Remove the double nutted from the stud bolts.

68. Install the torque converter. (See TORQUE CONVERTER REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

69. Install the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

70. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT [AY6A-EL, AY6AX-EL].)

71. Perform the “TCM NEUTRAL POSITION LEARNING”. (See TCM NEUTRAL POSITION LEARNING [AY6A-EL, AY6AX-EL].)

72. Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT [AY6A-EL, AY6AX-EL].)

73. Perform the “MECHANICAL SYSTEM TEST”. (See MECHANICAL SYSTEM TEST [AY6A-EL, AY6AX-EL].)

74. Perform the “ROAD TEST”. (See ROAD TEST [AY6A-EL, AY6AX-EL].)
