POWER LIFTGATE (PLG) ARM REMOVAL/INSTALLATION

id091100000600

Note

•  If the negative battery cable is disconnected with the liftgate half opened, the clutch cannot be disengaged resulting in difficulty in opening/closing operation of the liftgate. Disconnect the negative battery cable with the liftgate in the fully open/close position.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)

(2)  Seat side box (LH) (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION.)

(5)  Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

(6)  Rear scuff plate inner (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION)

(8)  Roof side trim (LH) (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(9)  Second-row seat belt upper anchor installation bolt (LH) (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(10)  C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Third-row seat belt upper anchor installation bolt (LH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

(12)  D-pillar trim (LH) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

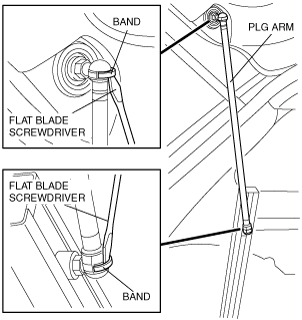

3.  Disconnect the PLG arm band with using the flat blade screwdriver.

ac9uuw00000886

4.  Remove the PLG arm.

5.  Install in the reverse order of removal.
