PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)]

id0810b9703500

Note

•  The SRS air bag system can be identified by whether or not the seat track position sensor is present.

―  Standard deployment control system: Without seat track position sensor

―  Two-step deployment control system: With seat track position sensor

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the glove compartment.(See GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)].)

4.  Disconnect the connectors.

a30zzw00002918

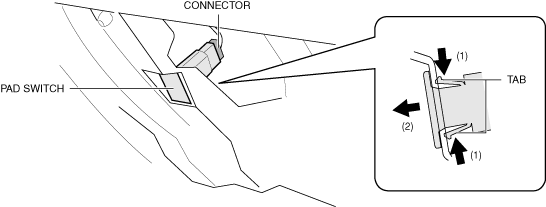

5.  Press the air bag deactivation switch in the direction of arrow (2) while pressing the tab of the air bag deactivation switch in the direction of arrow (1) shown in the figure. Detach the air bag deactivation switch from the dashboard.

6.  Install in the reverse order of removal.

7.  Switch the main power ON (READY off or on).

8.  Verify that the air bag/seat belt pre-tensioner system warning light turns on for approx. 6 s and turns off.

•  If the air bag/pre-tensioner warning light does not work properly, verify the DTCs. (See DTC INSPECTION.)
