FRONT POWER WINDOW MOTOR INSPECTION

id091200702800

LH

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

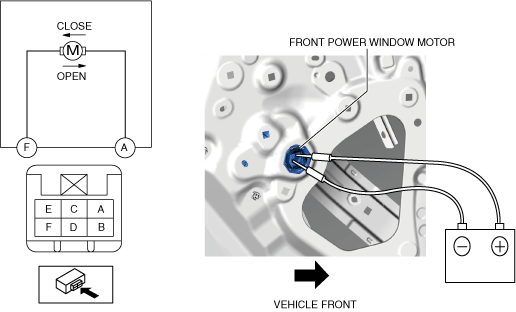

3.  Apply lead-acid battery positive voltage and connect the ground to power window motor terminals A and F, and then inspect the power window motor operation.

Lead-acid battery terminal	Ground Terminal	Operation
A	F	Close
F	A	Open

a30zzw00006917

•   If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

RH

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

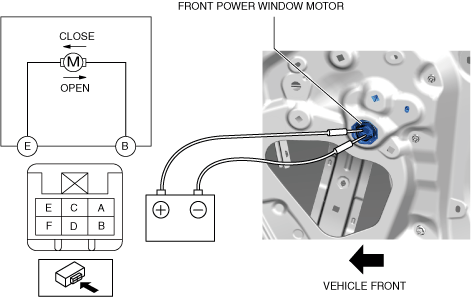

3.  Apply lead-acid battery positive voltage and connect the ground to power window motor terminals B and E, and then inspect the power window motor operation.

Lead-acid battery terminal	Ground Terminal	Operation
B	E	Close
E	B	Open

ac30zw00002189

•   If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION.)
