POWER SEAT SWITCH REMOVAL/INSTALLATION


id091300302200

Warning
•  Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling a front seat equipped with a side air bag.(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front seat side cover.(See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(E)].)

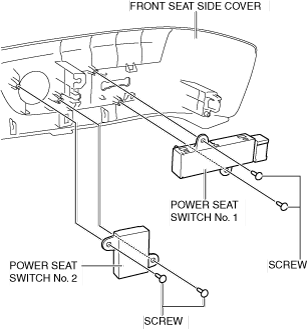

4.  Remove the screws.

a30zzw00004278

5.  Remove the power seat switch No.1 and No.2.

6.  Install in the reverse order of removal.
