FRONT DOOR GARNISH REMOVAL/INSTALLATION

id091600044700

Replacement parts

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)

2.  Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

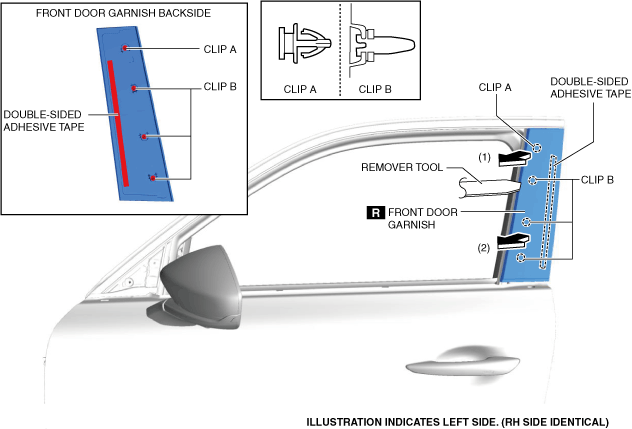

3.  Using the remover tool, remove the clips in the directions shown by arrows (1) and (2).

a30zzw00000619

4.  Using a utility knife, cut off the double-sided adhesive tape at the position shown in the figure, and remove front door garnish from the body.

5.  Install in the reverse order of removal. (See Front Door Garnish Installation Note.)

Front Door Garnish Installation Note

1.  To install the front door garnish, perform the following procedure:

(1)  Using a utility knife, remove the double-sided adhesive tape on the body.

(2)  Clean and degrease the area where the double-sided adhesive tape was attached.
