SIDE STEP MOLDING REMOVAL

id091600045800

1.  Remove the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(2)  Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)

(3)  Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)

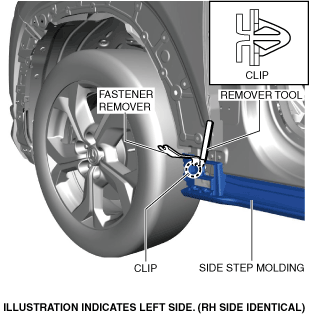

2.  Insert the remover tool and fastener remover into the position shown and remove the clip from the body.

a30zzw00000644

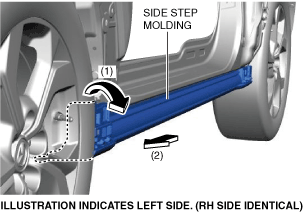

3.  Remove the side step molding in the direction of arrow (2) while pulling the side step molding in the direction of arrow (1) shown in the figure.

a30zzw00000645

4.  After removing the side step molding, remove the clips from the body using a fastener remover or the like.
