SIDE STEP MOLDING INSTALLATION

id091600045900

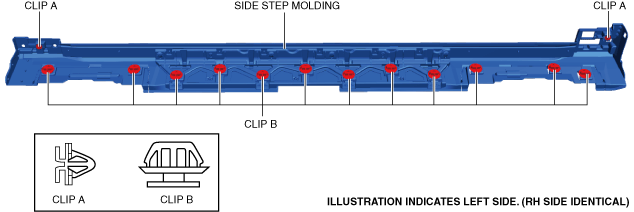

1.  Install clips A and B to the side step molding.

a30zzw00000646

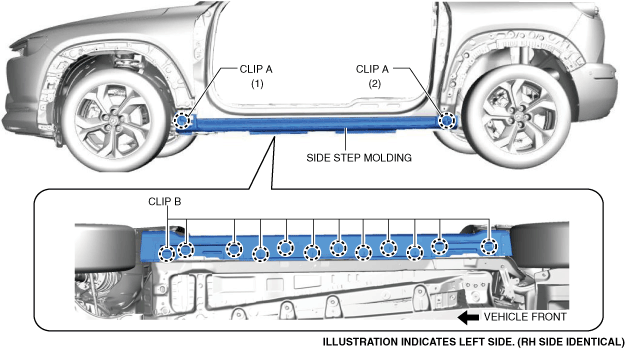

2.  Push in the side step molding and attach clips A to the body in the order of (1), (2).

a30zzw00000647

3.  Push in the side step molding and attach clips B to the body.

4.  Install the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(2)  Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)

(3)  Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION.)
