SHIFT PANEL REMOVAL/INSTALLATION

id091700048600

1.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

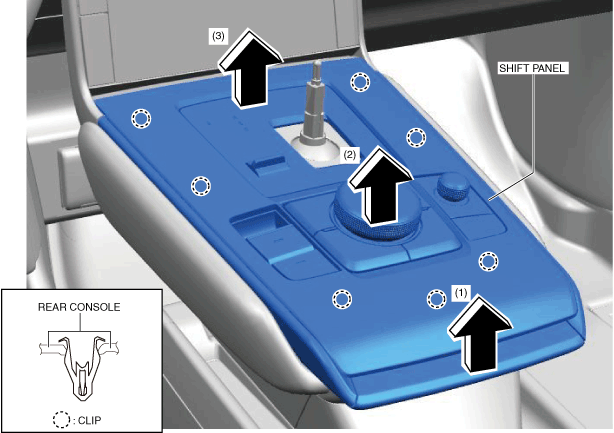

3.  Move the shift panel in the order of arrows (1), (2), and (3) shown in the figure and detach the clips.

a30zzw00000036

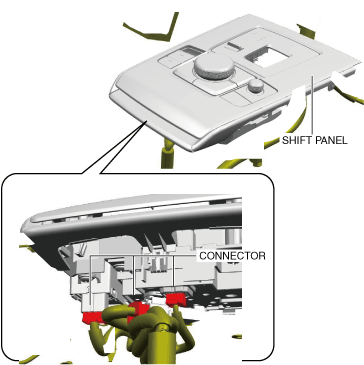

4.  Disconnect the connectors.

a30zzw00000068

5.  Remove the shift panel.

6.  Install in the reverse order of removal.

Note

•  When replacing the shift panel, remove the following parts:

•  Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)

•  Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)
