CONSOLE PANEL REMOVAL/INSTALLATION

id091700048700

1.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

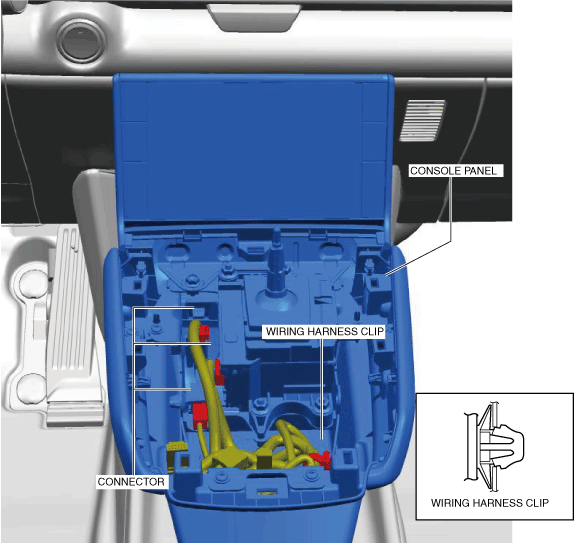

4.  Disconnect the connectors.

a30zzw00000222

5.  Remove the wiring harness clip from the console panel.

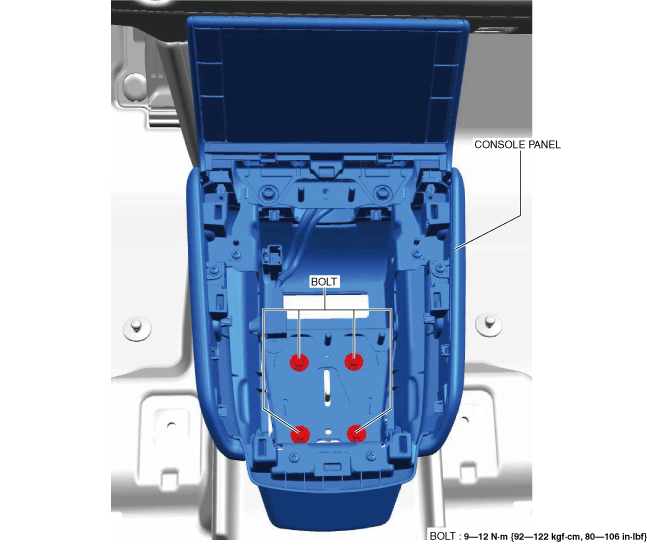

6.  Remove the bolts.

a30zzw00000223

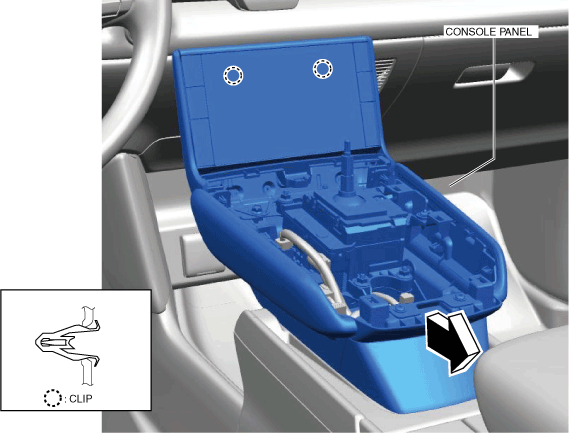

7.  Move the console panel in the direction of the arrow shown in the figure, and remove it while detaching the clips.

a30zzw00000224

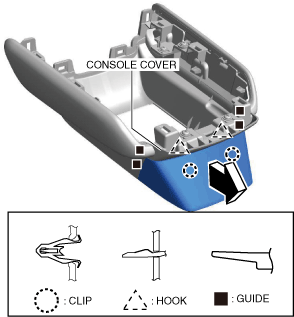

8.  To remove the console cover, perform the following procedure.

(1)  Move the console cover in the direction of the arrow shown and remove it while removing the clips, hooks, and guides.

a30zzw00000345

9.  Install in the reverse order of removal.

Note

•  When replacing the console panel, remove the following parts:

•  Selector lever component (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

•  Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
