CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1704300

1.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

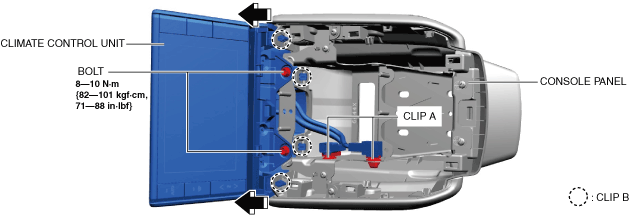

4.  Detach clip A.

a30zzw00002861

5.  Remove the bolts.

6.  Pull the climate control unit in the direction of the arrows shown in the figure to detach clips B from the console panel.

7.  Remove the climate control unit.

8.  Install in the reverse order of removal.

9.  If the climate control unit is replaced, perform the following procedure.

(1)  Switch the main power ON (READY off) to complete the global central configuration (GCC) for the climate control unit.

(2)  Clear the DTC. (See CLEARING DTC.)

(3)  Turn on the [AUTO] switch and verify that the air conditioner system starts.

•  If the air conditioner system does not start, verify the DTC. (See DTC INSPECTION.)
