FRONT CONSOLE BOX REMOVAL/INSTALLATION

id091700049100

1.  Remove the select lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

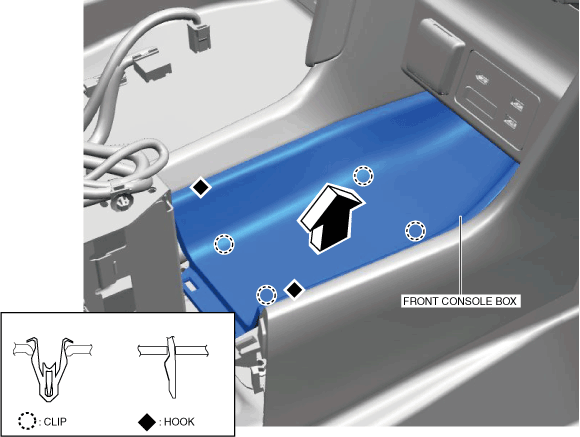

4.  Move the front console box in the direction of the arrow shown in the figure and detach the clips and hooks from the front console.

a30zzw00005982

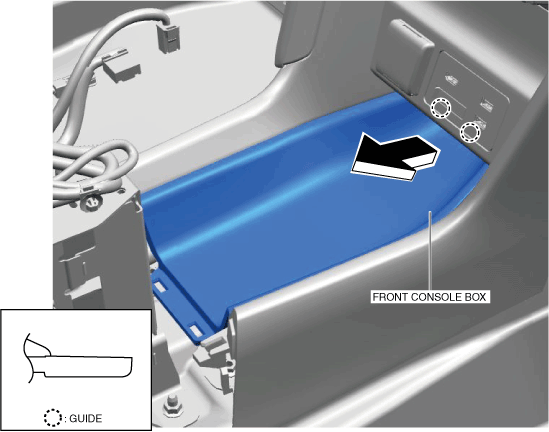

5.  Move the front console box in the direction of the arrow shown in the figure and remove it while releasing the guides.

a30zzw00005983

6.  Remove the front console box.

7.  Install in the reverse order of removal.
