FOOT SUPPORT REMOVAL/INSTALLATION

id091700052400

1.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

3.  Remove the fastener.

a30zzw00000167

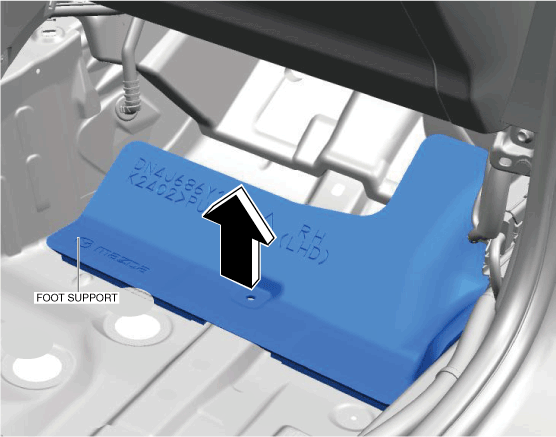

4.  Remove the foot support in the direction of the arrow shown in the figure.

a30zzw00000168

5.  Install in the reverse order of removal.
