REAR FOG LIGHT REMOVAL/INSTALLATION [(E)]

id0918007017x2

1. Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the rear under cover. (See REAR UNDER COVER REMOVAL/INSTALLATION.)

3. Remove the rear bumper stay. (See REAR BUMPER STAY REMOVAL/INSTALLATION.)

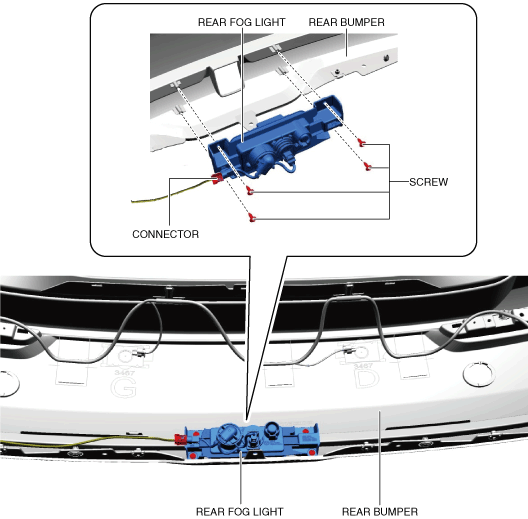

4. Disconnect the connector.

a30zzw00002988

6. Remove the rear fog light.

7. Install in the reverse order of removal.

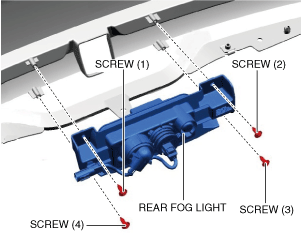

Rear Fog Light Installation Note

1. Install in the order of screw (1), screw (2), screw (3) and screw (4).

a30zzw00002989
