REAR FOG LIGHT BULB REMOVAL/INSTALLATION [(E)]

id0918007018x2

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear under cover. (See REAR UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the rear bumper stay. (See REAR BUMPER STAY REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

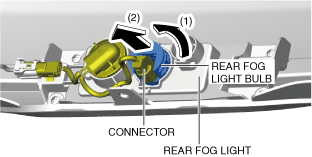

a30zzw00004481

5.  Turn the rear fog light bulb in the direction of arrow (1) shown in the figure.

6.  Move the rear fog light bulb in the direction of arrow (2) shown in the figure and remove it.

7.  Install in the reverse order of removal.
