HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION


id091800701900

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION.)

3.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear spoiler. (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

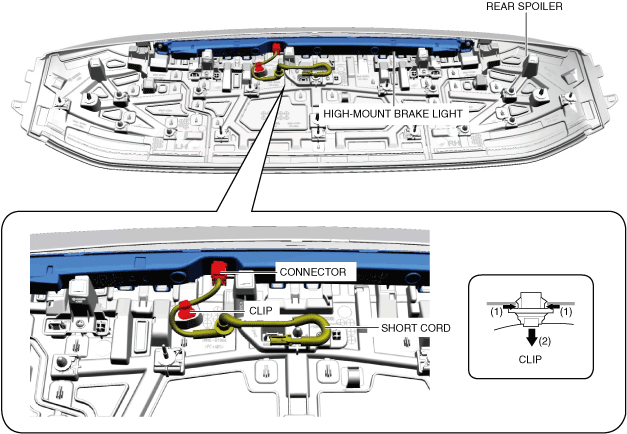

5.  While moving the tabs of the clip in the direction of arrow (1) shown in the figure, move the clip in the direction of arrow (2) and remove it from the rear spoiler.

a30zzw00002990

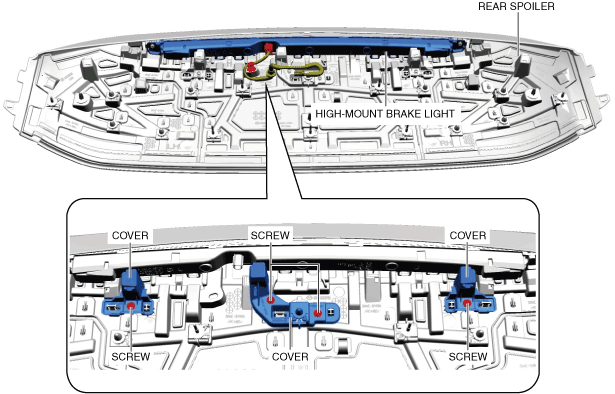

6.  Disconnect the connector.

7.  Remove the short cord.

8.  Remove the screws.

a30zzw00002991

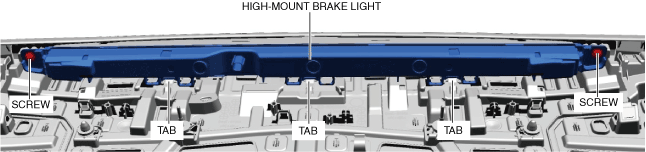

9.  Remove the cover.

10.  Remove the screws.

a30zzw00002992

11.  Press the tab to detach the high-mount brake light from the rear spoiler.

12.  Remove the high-mount brake light.

13.  Install in the reverse order of removal.
