ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION

id094000700400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim (LH) to a position where the electrical supply unit (ESU) can be removed. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the electrical supply unit (ESU). (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)

5.  Remove the clip.

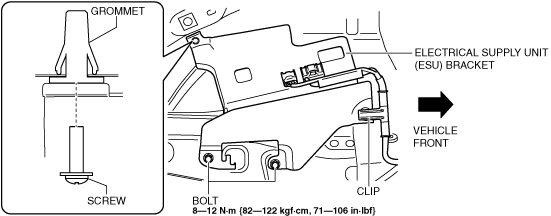

a30zzw00002664

6.  Remove the bolts.

7.  Remove the screw.

8.  Remove the guide of the electrical supply unit (ESU) bracket from the body.

9.  Remove the grommet from the body.

10.  Remove the electrical supply unit (ESU).

11.  Install in the reverse order of removal.
