DETERMINING SHORT TO POWER SUPPLY LOCATION (CAN-BUS No.4) [R.H.D.]


id100226003100

Caution
•  Perform the following malfunction diagnosis only when it is diagnosed with a short to power supply by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

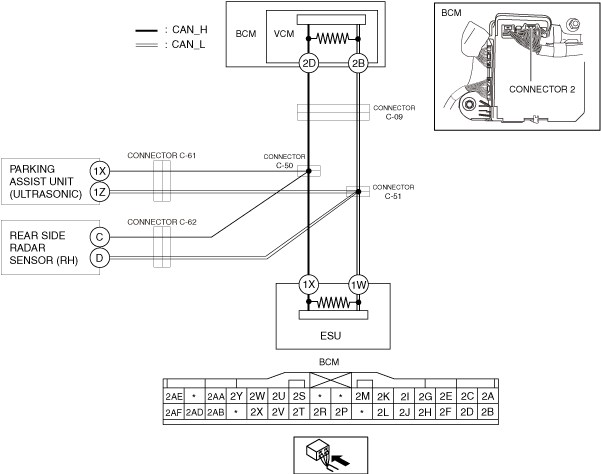

System Wiring Diagram

a30zzw00006590

Determination Procedure

Caution
•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.
•  When inspecting the connector, touch it with a paper clip or similar thin pin without directly inserting a tester probe into the terminal.
•  Disconnect the negative lead-acid battery terminal before performing any work that requires handling of connectors.

Step

Inspection

Action

1
INSPECT CAN LINE BETWEEN BODY CONTROL MODULE (BCM) AND CONNECTOR C-09 FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Disconnect the connector C-09.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at body control module (BCM) terminals 2D and 2B.
•  Is the voltage between 1.5—3.5 V?
Yes
Go to Step 3.
No
Go to the next step.
2
INSPECT BODY CONTROL MODULE (BCM) FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Disconnect the connector 2 which has body control module (BCM) terminals 2D and 2B.
•  Connect the connector C-09.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at body control module (BCM) terminals 2D and 2B (wiring harness side).
•  Is the voltage between 1.5—3.5 V?
Yes
Replace the body control module (BCM) because there is a short to the power supply in the body control module (BCM).
No
Repair or replace the wiring harness between the body control module (BCM) and connector C-09 because the wiring harness is shorted to the power supply.
3
INSPECT CAN LINE BETWEEN CONNECTOR C-09 AND CONNECTORS C-50, C-51 FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Disconnect the connectors C-50, C-51.
•  Connect the connector C-09.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at body control module (BCM) terminals 2D and 2B.
•  Is the voltage between 1.5—3.5 V?
Yes
Go to the next step.
No
Repair or replace the wiring harness between connector C-09 and connectors C-50, C-51 because the wiring harness is shorted to the power supply.
4
INSPECT CAN LINE BETWEEN PARKING ASSIST UNIT (ULTRASONIC) AND CONNECTORS C-50, C-51
•  Measure the voltage at parking assist unit (ultrasonic) terminals 1X and 1Z.
•  Is the voltage between 1.5—3.5 V?
Yes
Go to Step 7.
No
Go to the next step.
5
INSPECT CAN LINE BETWEEN PARKING ASSIST UNIT (ULTRASONIC) AND CONNECTOR C-61 FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Disconnect the connector C-61.
•  Disconnect the parking assist unit (ultrasonic) connector.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at parking assist unit (ultrasonic) terminals 1X and 1Z.
•  Is the voltage between 1.5—3.5 V?
Yes
Repair or replace the wiring harness between the connector C-61 and connectors C-50, C-51 because the wiring harness is shorted to the power supply.
No
Go to the next step.
6
INSPECT PARKING ASSIST UNIT (ULTRASONIC) FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Connect the connector C-61.
•  Connect the connectors C-50, C-51.
•  Disconnect the parking assist unit (ultrasonic) connector.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at body control module (BCM) terminals 2D and 2B.
•  Is the voltage between 1.5—3.5 V?
Yes
Replace the parking assist unit (ultrasonic) because there is a short to the power supply in the parking assist unit (ultrasonic).
No
Repair or replace the wiring harness between the parking assist unit (ultrasonic) and connector C-61 because the wiring harness is shorted to the power supply.
7
INSPECT CAN LINE BETWEEN CONNECTORS C-50, C-51 AND REAR SIDE RADAR SENSOR (RH) FOR SHORT TO POWER SUPPLY
•  Measure the voltage at rear side radar sensor (RH) terminals C and D.
•  Is the voltage between 1.5—3.5 V?
Yes
Go to Step 10.
No
Go to the next step.
8
INSPECT CAN LINE BETWEEN REAR SIDE RADAR SENSOR (RH) AND CONNECTOR C-62 FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Connect the connectors C-50, C-51.
•  Disconnect the connector C-62.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at rear side radar sensor (RH) terminals C and D.
•  Is the voltage between 1.5—3.5 V?
Yes
Repair or replace the wiring harness between the connector C-62 and connectors C-50, C-51 because the wiring harness is shorted to the power supply.
No
Go to the next step.
9
INSPECT REAR SIDE RADAR SENSOR (RH) FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Connect the connector C-62.
•  Disconnect the rear side radar sensor (RH) connector.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at body control module (BCM) terminals 2D and 2B.
•  Is the voltage between 1.5—3.5 V?
Yes
Replace the rear side radar sensor (RH) because there is a short to the power supply in the rear side radar sensor (RH).
No
Repair or replace the wiring harness between the rear side radar sensor (RH) and connector C-62 because the wiring harness is shorted to the power supply.
10
INSPECT ELECTRICAL SUPPLY UNIT (ESU) FOR SHORT TO POWER SUPPLY
•  Switch the main power OFF.
•  Disconnect the negative lead-acid battery terminal.
•  Connect the connectors C-50, C-51.
•  Disconnect the electrical supply unit (ESU) connector.
•  Connect the negative lead-acid battery terminal.
•  Switch the main power ON (READY off).
•  Measure the voltage at body control module (BCM) terminals 2D and 2B.
•  Is the voltage between 1.5—3.5 V?
Yes
Replace the electrical supply unit (ESU) because there is a short to the power supply in the electrical supply unit (ESU).
No
Repair or replace the wiring harness between the electrical supply unit (ESU) and connectors C-50, C-51 because the wiring harness is shorted to the power supply.
