DETERMINING SHORT TO GROUND LOCATION (CAN-BUS No.5) [R.H.D.]

id100226003400

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a short to ground by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

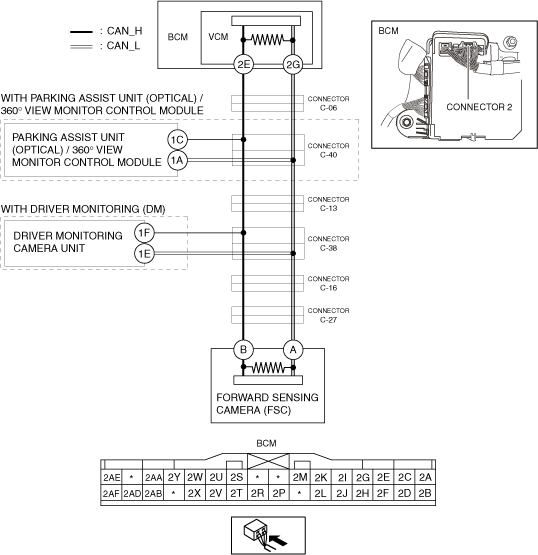

System Wiring Diagram

a30zzw00006598

Determination Procedure

Caution

•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

•  When inspecting the connector, touch it with a paper clip or similar thin pin without directly inserting a tester probe into the terminal.

Step	Inspection		Action
1	INSPECT CAN LINE IN BODY CONTROL MODULE (BCM) FOR SHORT TO GROUND •  Switch the main power OFF. •  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION) •  Disconnect the connector 2 which has body control module (BCM) terminals 2E and 2G. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E (wiring harness side) and body ground ―  Between body control module (BCM) terminal 2G (wiring harness side) and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Replace the body control module (BCM) because there is a short to ground in the body control module (BCM). (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
2	INSPECT FOR SHORT TO GROUND BETWEEN BODY CONTROL MODULE (BCM) AND CONNECTOR C-06 •  Disconnect the connector C-06. •  Connect the connector 2 which has body control module (BCM) terminals 2E and 2G. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the body control module (BCM) and connector C-06 because the wiring harness is shorted to ground.
		No	•  Go to the next step. (With parking assist unit (optical) / 360° view monitor control module) •  Go to Step 7. (Without parking assist unit (optical) / 360° view monitor control module)
3	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-40 AND CONNECTOR C-06 •  Disconnect the connector C-40. •  Connect the connector C-06. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-40 and connector C-06 because the wiring harness is shorted to ground.
		No	Go to the next step.
4	INSPECT FOR SHORT TO GROUND BETWEEN PARKING ASSIST UNIT (OPTICAL) / 360° VIEW MONITOR CONTROL MODULE AND CONNECTOR C-40 •  Inspect for continuity at the following terminals: ―  Between parking assist unit (optical) / 360° view monitor control module terminal 1C and body ground ―  Between parking assist unit (optical) / 360° view monitor control module terminal 1A and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 6.
5	INSPECT CAN LINE IN PARKING ASSIST UNIT (OPTICAL) / 360° VIEW MONITOR CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the parking assist unit (optical) / 360° view monitor control module connector. •  Inspect for continuity at the following terminals: ―  Between parking assist unit (optical) / 360° view monitor control module terminal 1C (wiring harness side) and body ground ―  Between parking assist unit (optical) / 360° view monitor control module terminal 1A (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the parking assist unit (optical) / 360° view monitor control module and connector C-40 because the wiring harness is shorted to ground.
		No	Replace the parking assist unit (optical) / 360° view monitor control module because there is a short to ground in the parking assist unit (optical) / 360° view monitor control module. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].)
6	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-13 AND CONNECTOR C-40 •  Disconnect the connector C-13. •  Connect the connector C-40. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-13 and connector C-40 because the wiring harness is shorted to ground.
		No	•  Go to Step 8. (With driver monitoring camera unit) •  Go to Step 12. (Without driver monitoring camera unit)
7	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-13 AND CONNECTOR C-06 •  Disconnect the connector C-13. •  Connect the connector C-06. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-13 and connector C-06 because the wiring harness is shorted to ground.
		No	Go to the next step.
8	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-13 AND CONNECTOR C-38 •  Disconnect the connector C-38. •  Connect the connector C-13. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-13 and connector C-38 because the wiring harness is shorted to ground.
		No	•  Go to the next step. (With driver monitoring camera unit) •  Go to Step 11. (Without driver monitoring camera unit)
9	INSPECT FOR SHORT TO GROUND BETWEEN DRIVER MONITORING CAMERA UNIT AND CONNECTOR C-38 •  Inspect for continuity at the following terminals: ―  Between driver monitoring camera unit terminal 1F and body ground ―  Between driver monitoring camera unit terminal 1E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 11.
10	INSPECT CAN LINE IN DRIVER MONITORING CAMERA UNIT FOR SHORT TO GROUND •  Disconnect the driver monitoring camera unit connector. •  Inspect for continuity at the following terminals: ―  Between driver monitoring camera unit terminal 1F (wiring harness side) and body ground ―  Between driver monitoring camera unit terminal 1E (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the driver monitoring camera unit and connector C-38 because the wiring harness is shorted to ground.
		No	Replace the driver monitoring camera unit because there is a short to ground in the driver monitoring camera unit. (See DRIVER MONITORING CAMERA REMOVAL/INSTALLATION.)
11	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-16 AND CONNECTOR C-38 •  Disconnect the connector C-16. •  Connect the connector C-38. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-16 and connector C-38 because the wiring harness is shorted to ground.
		No	Go to the next step.
12	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-27 AND CONNECTOR C-16 •  Disconnect the connector C-27. •  Connect the connector C-16. •  Inspect for continuity at the following terminals: ―  Between body control module (BCM) terminal 2E and body ground ―  Between body control module (BCM) terminal 2G and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-27 and connector C-16 because the wiring harness is shorted to ground.
		No	Go to the next step.
13	INSPECT CAN LINE IN FORWARD SENSING CAMERA (FSC) FOR SHORT TO GROUND •  Disconnect the forward sensing camera (FSC) connector. •  Inspect for continuity at the following terminals: ―  Between forward sensing camera (FSC) terminal B (wiring harness side) and body ground ―  Between forward sensing camera (FSC) terminal A (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the forward sensing camera (FSC) and connector C-27 because the wiring harness is shorted to ground.
		No	Replace the forward sensing camera (FSC) because there is a short to ground in the forward sensing camera (FSC). (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)
