DTC U2519:00 [REAR SIDE RADAR SENSOR]

id1502c8078300

Outline

System malfunction location

Error signal received from rear side radar sensor (RH)

Detection condition

•  Rear side radar sensor (LH) receives the error signal from the rear side radar sensor (RH).

Fail-safe

(See DTC TABLE [REAR SIDE RADAR SENSOR (E)].)

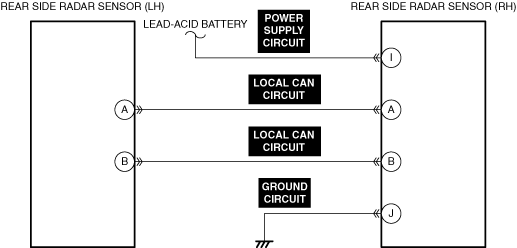

Possible cause

•  Rear side radar sensor (RH) connector or terminal malfunction

•  Short to ground or open circuit in rear side radar sensor (RH) power supply circuit

•  Open circuit in rear side radar sensor (RH) ground circuit

•  Rear side radar sensor (LH) connector or terminal malfunction

•  Short to ground in local CAN circuit

•  Short to power supply in local CAN circuit

•  Open circuit in local CAN circuit

•  Rear side radar sensor (RH) malfunction

•  Rear side radar sensor (LH) malfunction

System malfunction location	Error signal received from rear side radar sensor (RH)
Detection condition	• Rear side radar sensor (LH) receives the error signal from the rear side radar sensor (RH).
Fail-safe	(See DTC TABLE [REAR SIDE RADAR SENSOR (E)].)
Possible cause	• Rear side radar sensor (RH) connector or terminal malfunction • Short to ground or open circuit in rear side radar sensor (RH) power supply circuit • Open circuit in rear side radar sensor (RH) ground circuit • Rear side radar sensor (LH) connector or terminal malfunction • Short to ground in local CAN circuit • Short to power supply in local CAN circuit • Open circuit in local CAN circuit • Rear side radar sensor (RH) malfunction • Rear side radar sensor (LH) malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT REAR SIDE RADAR SENSOR FOR MALFUNCTION

•  Perform the DTC inspection for the rear side radar sensor.
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [REAR SIDE RADAR SENSOR (E)].)

No

Go to the next step.

2

INSPECT REAR SIDE RADAR SENSOR (RH) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT REAR SIDE RADAR SENSOR (RH) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT

•  Inspect the power supply circuit for a short to ground and open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT REAR SIDE RADAR SENSOR (RH) GROUND CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT REAR SIDE RADAR SENSOR (LH) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT LOCAL CAN CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT LOCAL CAN CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT LOCAL CAN CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT REAR SIDE RADAR SENSOR (RH) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the rear side radar sensor.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].)

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

If the CAN communication is normal, replace the rear side radar sensor (RH) and perform the repair completion verification.

(See REAR SIDE RADAR SENSOR REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the rear side radar sensor.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].)

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the rear side radar sensor (LH), then go to the next step.
(See REAR SIDE RADAR SENSOR REMOVAL/INSTALLATION.)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT REAR SIDE RADAR SENSOR FOR MALFUNCTION • Perform the DTC inspection for the rear side radar sensor. (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [REAR SIDE RADAR SENSOR (E)].)
1		No	Go to the next step.
2	INSPECT REAR SIDE RADAR SENSOR (RH) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT REAR SIDE RADAR SENSOR (RH) POWER SUPPLY CIRCUIT FOR SHORT TO GROUND AND OPEN CIRCUIT • Inspect the power supply circuit for a short to ground and open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT REAR SIDE RADAR SENSOR (RH) GROUND CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT REAR SIDE RADAR SENSOR (LH) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT LOCAL CAN CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT LOCAL CAN CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT LOCAL CAN CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
8		No	Repair or replace the malfunctioning location and perform the repair completion verification.
9	INSPECT REAR SIDE RADAR SENSOR (RH) FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the rear side radar sensor. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, replace the rear side radar sensor (RH) and perform the repair completion verification. (See REAR SIDE RADAR SENSOR REMOVAL/INSTALLATION.)
9		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the rear side radar sensor. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the rear side radar sensor (LH), then go to the next step. (See REAR SIDE RADAR SENSOR REMOVAL/INSTALLATION.)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
