EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0116z8803700

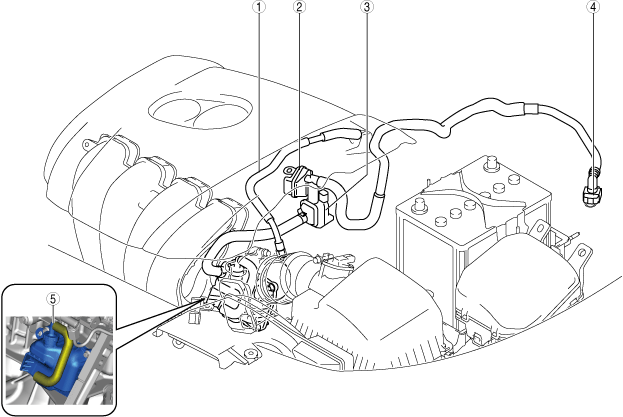

Engine Compartment Side

aaxjjw00030717

1	Ventilation hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CATCH TANK INSPECTION [SKYACTIV-G 2.0].)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.0].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 2.0].)

Exhaust System Side

2WD

am3zzw00021213

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

AWD

ac30zw00003566

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

Fuel Tank Side

2WD

a30zzw00005111

1	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHECK VALVE INSPECTION [SKYACTIV-G 2.0].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.0].)
3	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.0].)
4	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

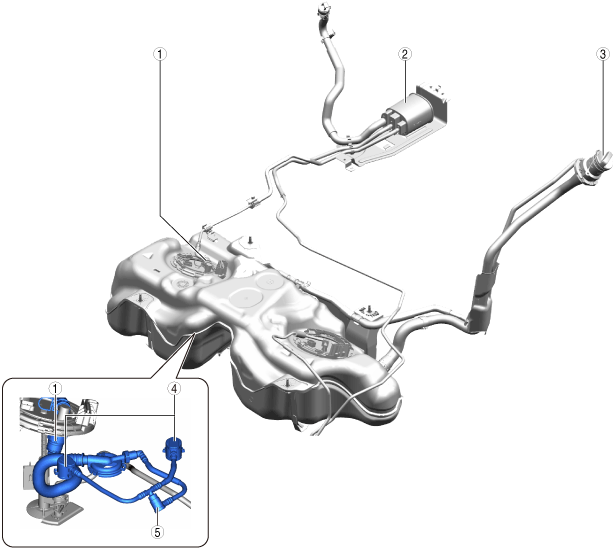

AWD

a30zzw00005112

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.0].)
3	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.0].)
5	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHECK VALVE INSPECTION [SKYACTIV-G 2.0].)
