DTC P1779:11 [SELECTOR LEVER]

id0502z3735800

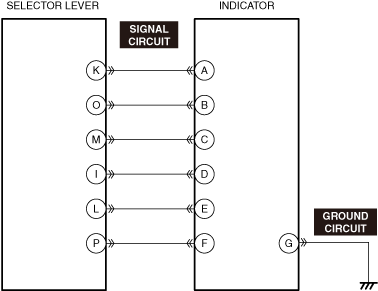

Outline

System malfunction location

Power supply

Detection condition

•  The selector lever detects a short to ground in the indicator signal circuit.

Fail-safe

Refer to the DTC table and fail-safe table according to the DTC. (See DTC TABLE [SELECTOR LEVER].)

Vehicle status when DTCs are output

Not applicable

Possible cause

•  Indicator connector or terminal malfunction

•  Selector lever connector or terminal malfunction

•  Short to ground in transmission control indicator light signal circuit

•  Indicator malfunction

•  Selector lever malfunction

System malfunction location	Power supply
Detection condition	• The selector lever detects a short to ground in the indicator signal circuit.
Fail-safe	Refer to the DTC table and fail-safe table according to the DTC. (See DTC TABLE [SELECTOR LEVER].)
Vehicle status when DTCs are output	Not applicable
Possible cause	• Indicator connector or terminal malfunction • Selector lever connector or terminal malfunction • Short to ground in transmission control indicator light signal circuit • Indicator malfunction • Selector lever malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT INDICATOR CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CIRCUIT INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

INSPECT SELECTOR LEVER CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CIRCUIT INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT INDICATOR SIGNAL CIRUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT INDICATOR FOR MALFUNCTION

•  Inspect the applicable part.
(See INDICATOR INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See INDICATOR REMOVAL/INSTALLATION.)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the selector lever.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction is not resolved, replace the selector lever, then go to the next step.
(See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs ARE DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT INDICATOR CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CIRCUIT INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
1		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	INSPECT SELECTOR LEVER CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CIRCUIT INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT INDICATOR SIGNAL CIRUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT INDICATOR FOR MALFUNCTION • Inspect the applicable part. (See INDICATOR INSPECTION.) • Is the part normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See INDICATOR REMOVAL/INSTALLATION.)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the selector lever. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction is not resolved, replace the selector lever, then go to the next step. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs ARE DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
