DTC P0460:13 [BODY CONTROL MODULE (BCM)]

id0902r7052500

Outline

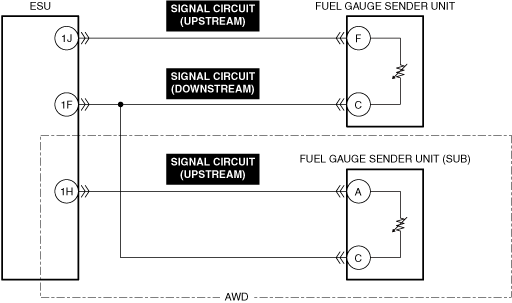

System malfunction location

Fuel gauge sender unit circuit malfunction

Detection condition

•  The electrical supply unit (ESU) detects an open circuit in the fuel gauge sender unit circuit.

Fail-safe

Not applicable

Possible cause

•  Fuel gauge sender unit connector or terminal malfunction

•  Fuel gauge sender unit (sub) connector or terminal malfunction

•  Fuel gauge sender unit malfunction

•  Fuel gauge sender unit (SUB) malfunction

•  Electrical supply unit (ESU) connector or terminal malfunction

•  Open circuit in fuel gauge sender unit signal circuit (upstream)

•  Electrical supply unit (ESU) malfunction

•  Body control module (BCM) malfunction

System malfunction location	Fuel gauge sender unit circuit malfunction
Detection condition	• The electrical supply unit (ESU) detects an open circuit in the fuel gauge sender unit circuit.
Fail-safe	Not applicable
Possible cause	• Fuel gauge sender unit connector or terminal malfunction • Fuel gauge sender unit (sub) connector or terminal malfunction • Fuel gauge sender unit malfunction • Fuel gauge sender unit (SUB) malfunction • Electrical supply unit (ESU) connector or terminal malfunction • Open circuit in fuel gauge sender unit signal circuit (upstream) • Electrical supply unit (ESU) malfunction • Body control module (BCM) malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Go to the next step.

No

Go to repair completion verification 2.

2

INSPECT FUEL GAUGE SENDER UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT FUEL GAUGE SENDER UNIT (SUB) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT FUEL GAUGE SENDER UNIT FOR MALFUNCTION

•  Inspect the applicable part.
(See FUEL GAUGE SENDER UNIT INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

5

INSPECT FUEL GAUGE SENDER UNIT (SUB) FOR MALFUNCTION

•  Inspect the applicable part.
(See FUEL GAUGE SENDER UNIT INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

6

INSPECT ELECTRICAL SUPPLY UNIT (ESU) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT FUEL GAUGE SENDER UNIT SIGNAL CIRCUIT (UPSTREAM) FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT ELECTRICAL SUPPLY UNIT (ESU) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.)

If the CAN communication is normal, repair or replace the malfunctioning location and perform the repair completion verification.

(See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Go to the next step.
1		No	Go to repair completion verification 2.
2	INSPECT FUEL GAUGE SENDER UNIT CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT FUEL GAUGE SENDER UNIT (SUB) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT FUEL GAUGE SENDER UNIT FOR MALFUNCTION • Inspect the applicable part. (See FUEL GAUGE SENDER UNIT INSPECTION.) • Is the part normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)
5	INSPECT FUEL GAUGE SENDER UNIT (SUB) FOR MALFUNCTION • Inspect the applicable part. (See FUEL GAUGE SENDER UNIT INSPECTION.) • Is the part normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)
6	INSPECT ELECTRICAL SUPPLY UNIT (ESU) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT FUEL GAUGE SENDER UNIT SIGNAL CIRCUIT (UPSTREAM) FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
7		No	Repair or replace the malfunctioning location and perform the repair completion verification.
8	INSPECT ELECTRICAL SUPPLY UNIT (ESU) FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.) If the CAN communication is normal, repair or replace the malfunctioning location and perform the repair completion verification. (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)
8		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW.) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
