SHROUD UPPER MEMBER REMOVAL/INSTALLATION

id091000042600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Hood latch protector (See HOOD LATCH REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the hood release cable from the clips. (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

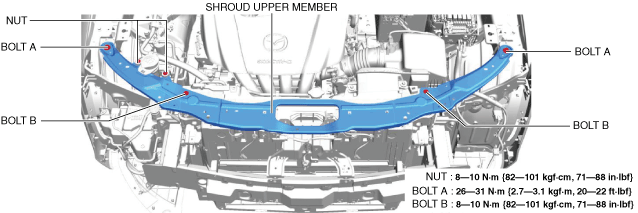

4.  Remove nuts.

a30zzw00005954

5.  Remove bolts A and B.

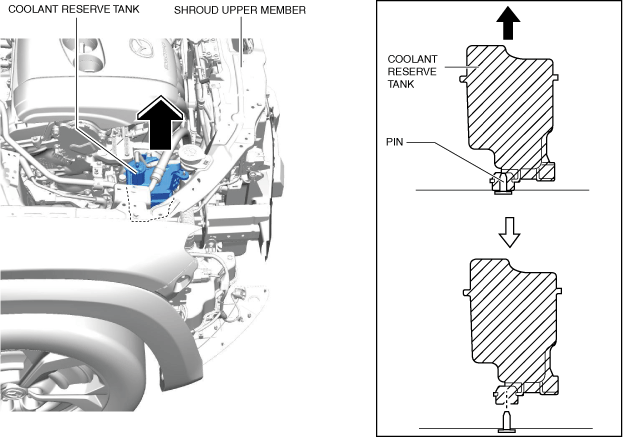

6.  Move the coolant reserve tank in the direction of the arrow shown in the figure and remove it from the pin.

a30zzw00005955

7.  Detach the tab from the shroud upper member.

a30zzw00005956

8.  Pull out the coolant reserve tank from the stud bolts of the shroud upper member.

9.  Remove the shroud upper member in the direction of the arrow shown in the figure

a30zzw00005957

10.  Install in the reverse order of removal.

11.  Perform the headlight aiming adjustment. (See HEADLIGHT AIMING.)

12.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

13.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

14.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
