WINDSHIELD INSTALLATION

id091200700700

Replacement parts

Warning

•  Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

Caution

•  If a door is opened or closed when all the door glass is fully closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the windshield. Keep the door glass open until the windshield installation is completed.

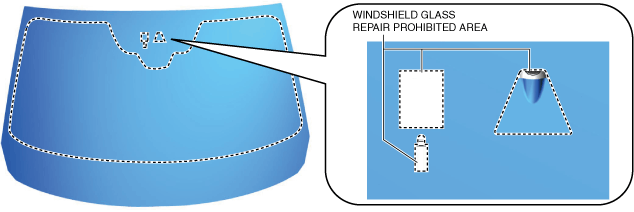

•  If there is damage or cracking in the windshield glass repair prohibited area, replace the windshield. If the damage or cracking in the windshield repair prohibited area is repaired, it could affect the recognition of the Forward Sensing Camera (FSC) or rain sensor, and the system may not operate normally.

a30zzw00000707

Reusing Windshield

1.  Remove the sealant along the perimeter of the windshield side using a utility knife.

2.  Inspect the windshield for cracks. If it is cracked, chamfer the edges of the windshield using sandpaper.

3.  Clean then degrease along the perimeter of the bonding area on the windshield.

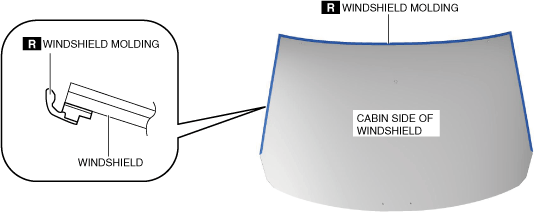

4.  Install the windshield molding.

a30zzw00000708

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

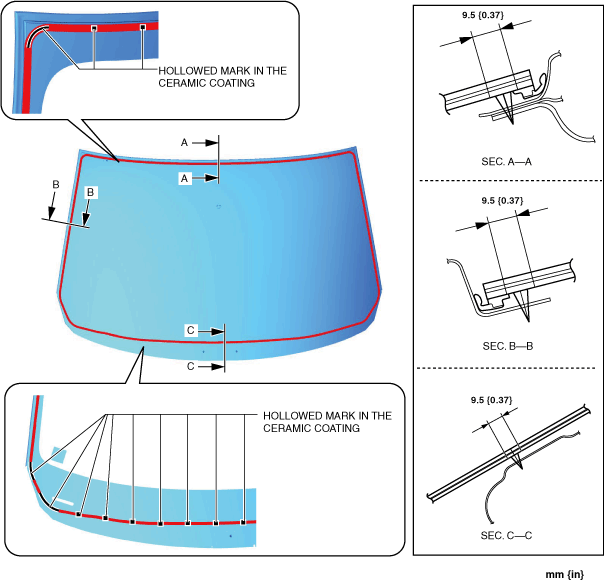

5.  Apply primer to the windshield in the area shown in the figure.

•  Follow the primer product instructions for the drying time.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

a30zzw00004467

6.  Cut away the old sealant using a utility knife or scraper so that a 1—2 mm {0.04—0.07 in} thickness of sealant remains along the perimeter on the body panel side.

am3zzw00024458

7.  Clean, then degrease along the perimeter of the bonding area on the body panel.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

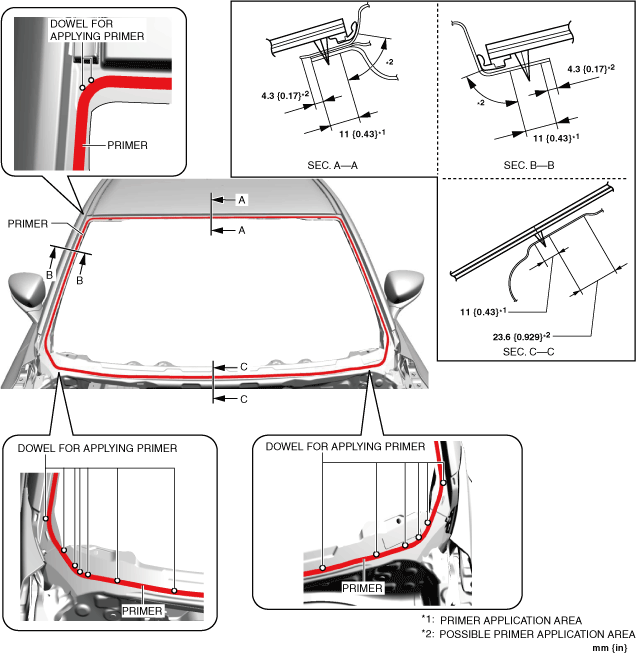

8.  Apply primer to the body panel in the area shown in the figure.

•  Follow the primer product instructions for the drying time.

a30zzw00000710

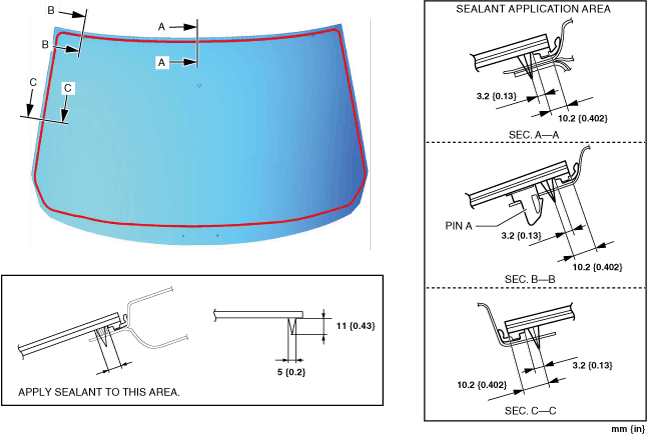

9.  Apply sealant to the front window glass surface as shown in the figure.

a30zzw00000711

10.  Insert pin A into the body panel and install the windshield.

11.  Install the following parts.

(1)  Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(2)  Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

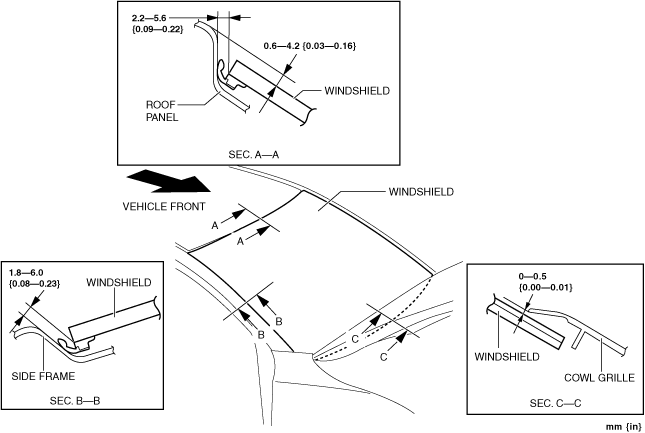

12.  Press all around the windshield so that the gaps and height differences between the side frame and the windshield, the roof panel and the windshield, and the cowl grille and the windshield are within the range shown in the figure.

a30zzw00003785

13.  Connect the auto-dimming rearview mirror connector. (With auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION.)

14.  Connect the forward sensing camera (FSC) connector. (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

15.  Connect the rain sensor connector. (See RAIN SENSOR REMOVAL/INSTALLATION.)

16.  Install the following parts.

(1)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(2)  Assist handle (front) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(7)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

17.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

18.  Allow the sealant to harden completely.

Note

•  Follow the product instructions for the sealant hardening time.

19.  Perform the forward sensing camera (FSC) aiming. (See FORWARD SENSING CAMERA (FSC) AIMING.)

Not Reusing Windshield

1.  Inspect the windshield for cracks. If it is cracked, chamfer the edges of the windshield using sandpaper.

2.  Clean, then degrease along the perimeter of the bonding area on the windshield.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

3.  Apply primer to the windshield in the area shown in the figure.

•  Follow the primer product instructions for the drying time.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

a30zzw00004467

4.  Cut away the old sealant using a utility knife or scraper so that a 1—2 mm {0.04—0.07 in} thickness of sealant remains along the perimeter on the body panel side.

am3zzw00024458

5.  Clean, then degrease along the perimeter of the bonding area on the body panel.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

6.  Apply primer to the body panel in the area shown in the figure.

•  Follow the primer product instructions for the drying time.

a30zzw00000710

7.  Apply sealant to the front window glass surface as shown in the figure.

a30zzw00000711

8.  Insert pin A into the body panel and install the windshield.

9.  Install the following parts.

(1)  Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(2)  Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

10.  Press all around the windshield so that the gaps and height differences between the side frame and the windshield, the roof panel and the windshield, and the cowl grille and the windshield are within the range shown in the figure.

a30zzw00003785

11.  Install the following parts.

(1)  Rearview mirror (Without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION.)

(2)  Auto-dimming rearview mirror (With auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION.)

(3)  Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION.)

(4)  Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

(5)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(6)  Assist handle (front) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(7)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(8)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(9)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(11)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

12.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

13.  Allow the sealant to harden completely.

Note

•  Follow the product instructions for the sealant hardening time.

14.  Perform the forward sensing camera (FSC) aiming. (See FORWARD SENSING CAMERA (FSC) AIMING.)
