EMBLEM INSTALLATION

id091600047000

Front Emblem

Front center brand emblem

•  When replacing the front center brand emblem, refer to [RADIATOR GRILLE DISASSEMBLY/ASSEMBLY]. (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY.)

Rear Emblem

1.  Clean and degrease the liftgate emblem adhesion area.

2.  Use a heat gun to warm the emblem to 15 °C {59 °F} and 40 °C {104 °F}.

3.  Insert the emblem pins into the emblem installation holes on the rear finisher, and affix them.

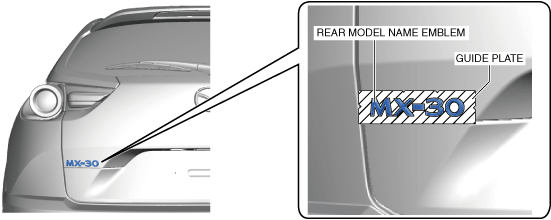

Rear model name emblem

a30zzw00006239

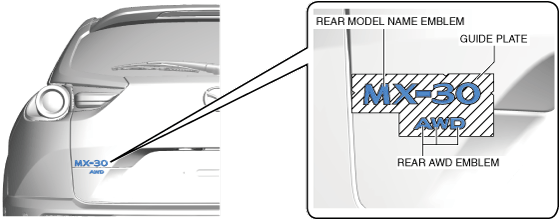

Rear AWD emblem

a30zzw00006240

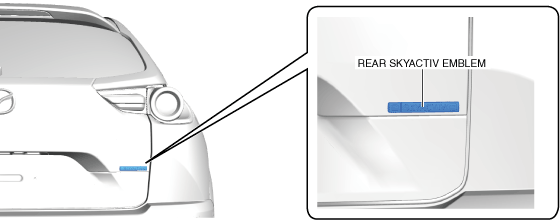

Rear SKYACTIV emblem

a30zzw00006241

4.  Hold the emblem (LH) with a force of 49 N {5.0 kgf, 11 lbf} or more so that the distance between the emblem and the adhesive surface is 0.4 mm {0.02 in} or less, and crimp it to the liftgate.

5.  Hold the emblem (RH) with a force of 49 N {5.0 kgf, 11 lbf} or more so that the distance between the emblem and the adhesive surface is 1.1 mm {0.043 in} or less, and crimp it to the liftgate.

Rear center brand emblem

•  When replacing the rear center brand emblem, refer to [REAR FINISHER REMOVAL/INSTALLATION]. (See REAR FINISHER REMOVAL/INSTALLATION.)
