VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700048300

Driver-side

1. Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2) Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4) Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(5) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(7) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

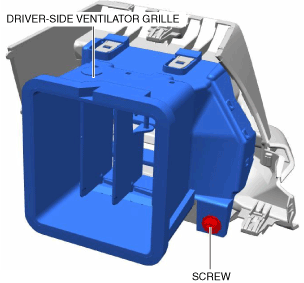

4. Remove the screw.

a30zzw00006102

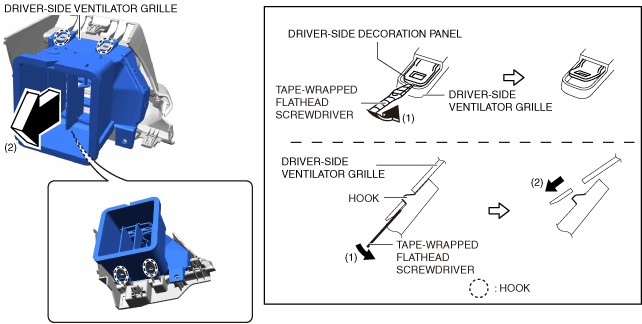

5. Using a tape-wrapped flathead screwdriver, move it in the direction of arrow (1) shown in the figure and while detaching the hooks, move the driver's ventilator grille in the direction of arrow (2) to remove it.

a30zzw00006103

6. Install in the reverse order of removal.

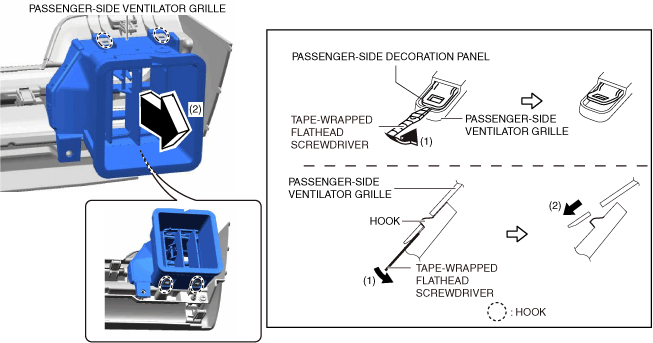

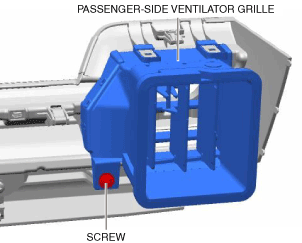

Passenger-side
