CONSOLE BRACKET REMOVAL/INSTALLATION

id091700052500

1.  Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

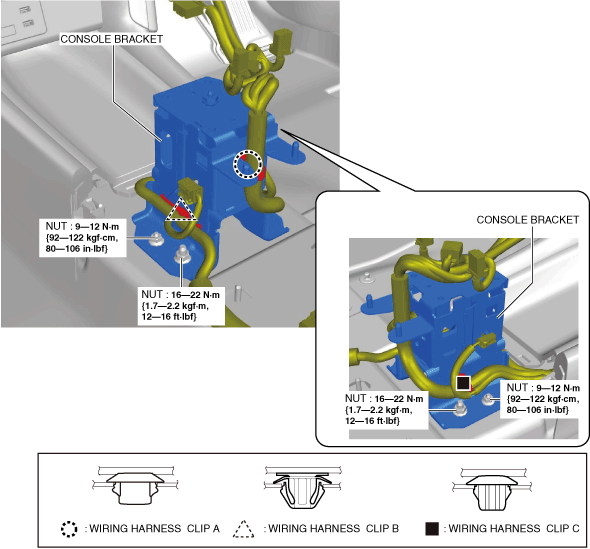

4.  Remove wiring harness clips A, B, and C.

a30zzw00006160

5.  Remove the nuts.

6.  Remove the console bracket.

7.  Install in the reverse order of removal.
