PASSENGER-SIDE LOWER PANEL REMOVAL

id091700053000

1.  Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(7)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

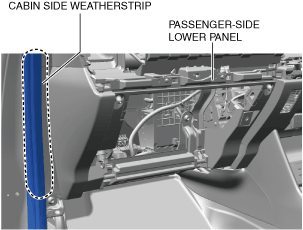

4.  Partially peel back the cabin side weatherstrip.

a30zzw00006205

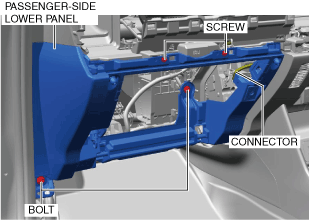

5.  Remove the bolts.

a30zzw00006206

6.  Remove the screws.

7.  Disconnect the connector.

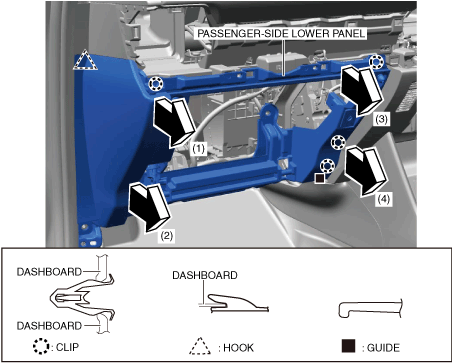

8.  Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure and detach the clips, hook and guide.

a30zzw00006207

Note

•  When replacing the passenger-side lower panel, remove the passenger air bag deactivation (PAD) switch. (See PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
