PASSENGER-SIDE LOWER PANEL INSTALLATION

id091700053200

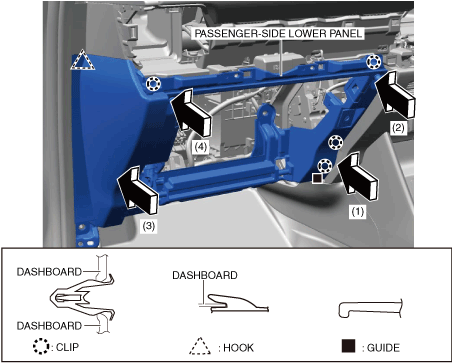

1.  While pushing the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, attach the clips, hook, and guide.

a30zzw00006208

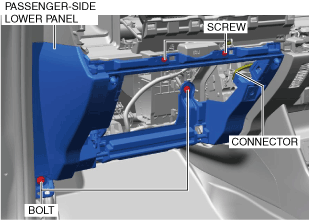

2.  Assemble the passenger-side lower panel to the dashboard and tighten the bolts and screws temporarily.

a30zzw00006209

3.  Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

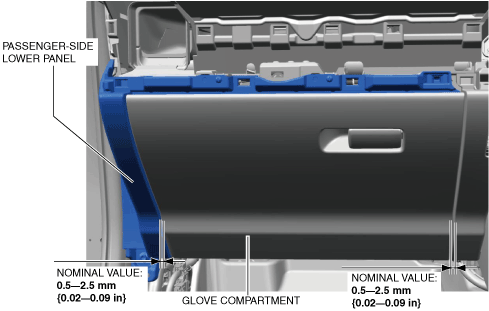

4.  Measure the gap between the glove compartment and the passenger-side lower panel and verify that the measured value is within the nominal value.

•  If not within the nominal value, move the passenger-side lower panel and adjust the installation position.

a30zzw00006210

5.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

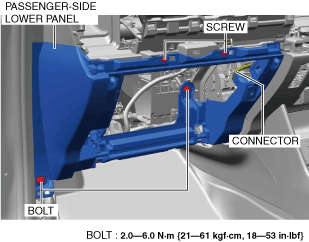

6.  Tighten the bolts and screws completely.

a30zzw00006211

7.  Install the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(7)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(8)  Select lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

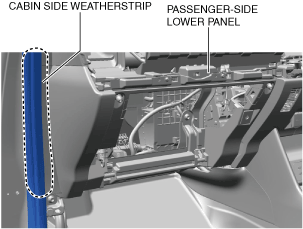

8.  Install the cabin side weatherstrip.

a30zzw00006212

9.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
