REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION

id092200701500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(4)  Rear trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(5)  Front trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the following parts.

(1)  Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

(2)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(4)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

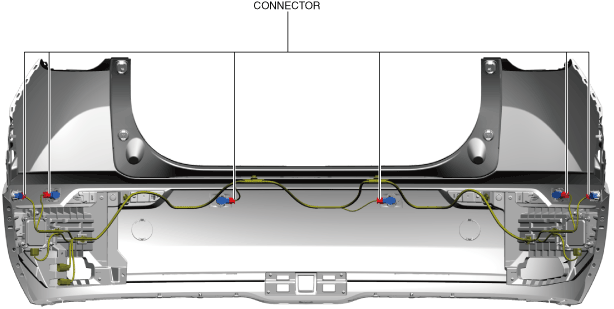

5.  Disconnect the connectors.

a30zzw00005664

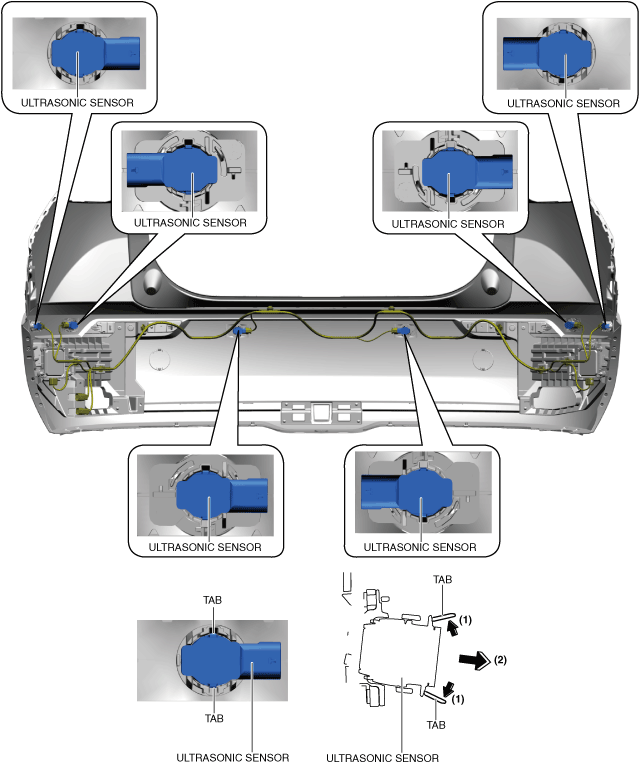

6.  Pull the rear ultrasonic sensor in the direction of arrow (2) while moving the tabs of the retainer in the direction of arrows (1) shown in the figure, and remove it.

a30zzw00005665

7.  Install in the reverse order of removal.

8.  Perform rear side radar sensor aiming. (See REAR SIDE RADAR SENSOR AIMING.)
