REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200701700

Replacement parts

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(4)  Rear trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(5)  Front trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the following parts.

(1)  Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

(2)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(4)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

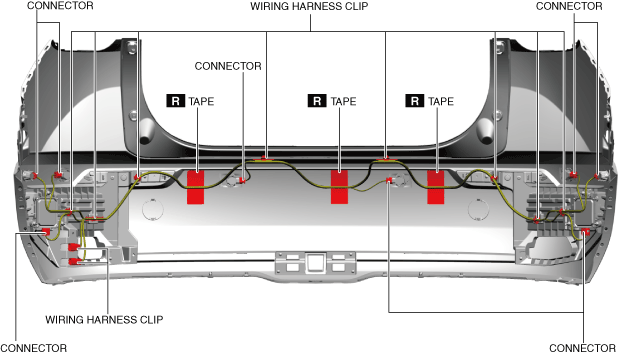

5.  Remove the tape.

a30zzw00005666

6.  Disconnect the connectors.

7.  Detach the wiring harness clips.

8.  Remove the rear ultrasonic sensor short cord.

9.  Install in the reverse order of removal.

10.  Perform rear side radar sensor aiming. (See REAR SIDE RADAR SENSOR AIMING.)
