DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION

id152000104700

1.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

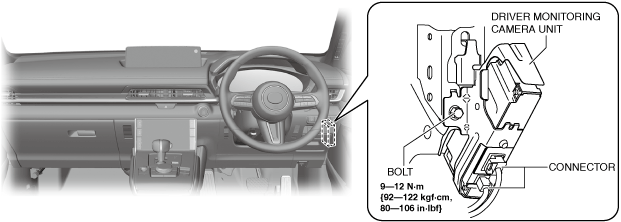

4.  Disconnect the connectors.

a30zzw00006440

5.  Remove the bolt.

6.  Remove the driver monitoring camera unit.

7.  Install in the reverse order of removal.

8.  If the driver monitoring camera unit is replaced, perform the following procedure.

(1)  Switch the ignition ON (engine off or on) to complete automatic configuration of the driver monitoring camera unit.

(2)  Clear the DTC. (See CLEARING DTC.)
