Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|

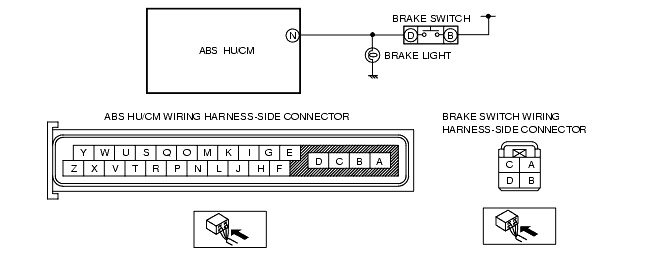

INSPECT ABS HU/CM TO BRAKE SWITCH FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Disconnect the ABS HU/CM and brake switch connector.
• Inspect for continuity ABS HU/CM terminal N and brake switch terminal D.
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for open circuit between ABS HU/CM and brake switch, then go to the next step.
|
||
|
2
|
INSPECT BRAKE SWITCH
• Inspect the brake switch.
(See BRAKE SWITCH INSPECTION.)
• Is the brake switch normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the brake switch, then go to the next step.
|
||
|
3
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the memory.
(See Clearing DTCs Procedures.)
• Are the same DTCs present?
|
Yes
|
Replace the ABS HU/CM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
4
|
VERIFY AFTER REPAIR PROCEDURE
• Are any other DTC present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC Table.)
|
|
No
|
DTC troubleshooting completed.
|
||
