DTC P2763 [SJ6A-EL]

id050208805400

DTC P2763

TCC control solenoid circuit malfunction (short to power)

DETECTION CONDITION

• Short circuit in TCC control solenoid signal system (while TCM monitors solenoid output voltage, the voltage that differs from the signal output by CPU in TCM is detected).
Diagnostic support note:
• The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
• A PENDING CODE is not available.
• FREEZE FRAME DATA is available.
• The AT warning light illuminates.
• The DTC is stored in the TCM memory.

POSSIBLE CAUSE

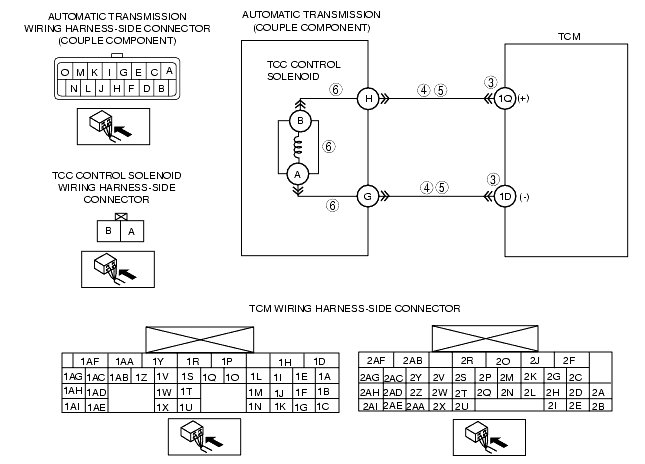

• Short to power in wiring harness between TCC control solenoid terminal B and TCM terminal 1Q
• Short to power in wiring harness between TCC control solenoid terminal A and TCM terminal 1D
• TCC control solenoid malfunction
• Damaged connector between TCC control solenoid and TCM
• TCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Bulletins and/or on-line repair information availability.
• Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT TCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch to the LOCK position.
• Disconnect the TCM connector.
• Inspect for poor connection at TCM terminals 1Q and 1D (such as damaged/pulled-out pins, corrosion).
• Are terminals normal?
Yes
Go to the next step.
No
Repair or replace the connector and/or terminal, then go to Step 7.
4
INSPECT TCC CONTROL SOLENOID CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (engine off).
• Measure the voltage at TCM (wiring harness-side) terminals 1Q and 1D.
• Is there 0 V at the TCM wiring harness-side connector terminals?
Yes
Go to go to Step 7.
No
Go to the next step.
5
INSPECT TCC CONTROL SOLENOID CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the LOCK position.
• Disconnect the couple component connector.
• Turn the ignition switch to the ON position (engine off).
• Measure the voltage at TCM (wiring harness-side) terminals 1Q and 1D.
• Is there 0 V at the TCM wiring harness-side connector terminals?
Yes
Go to the next step.
No
Repair or replace the wiring harness (TCM-couple component connector) for short to power supply, then go to Step 7.
6
INSPECT TCC CONTROL SOLENOID
• Inspect the TCC control solenoid.
• Is the TCC control solenoid normal?
Yes
Repair or replace the wiring harness (couple component connector-TCC control solenoid) for short to power supply, then go to the next step.
No
Replace the control valve body, then go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P2763 COMPLETED
• Make sure to reconnect all the disconnected connectors.
• Clear the DTC from the memory using the M-MDS.
• Drive the vehicle in D range and make sure that gears shift smoothly from 1GR to 6GR.
• Is same DTC present?
Yes
Replace the TCM, then go to the next step.
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
Troubleshooting completed.
