PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the following parts:

(1) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2) Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(3) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

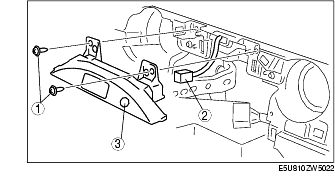

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
