KEYLESS RECEIVER REMOVAL/INSTALLATION


id091400438300

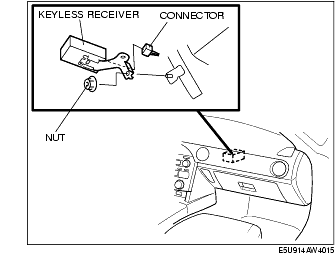

Front

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

2. Remove the glove compartment lid. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Disconnect the keyless receiver module connector.

4. Remove the nut, then remove the keyless receiver (front).

5. Install in the reverse order of removal.

Rear

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3. Remove the nuts.

4. Disconnect the connector.

5. Remove the keyless receiver (rear).

6. Install in the reverse order of removal.
