FUEL-FILLER LID OPENER REMOVAL/INSTALLATION

id091400804800

1. To remove the fuel-filler lid opener, remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2. When removing the fuel-filler lid opener lever and cable, perform the following procedure:

(1) Remove the seats. (See SEAT REMOVAL/INSTALLATION.)
(2) Remove the back trim. (See BACK TRIM REMOVAL/INSTALLATION.)
(3) Remove the seat back bar lower garnish. (See SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION.)

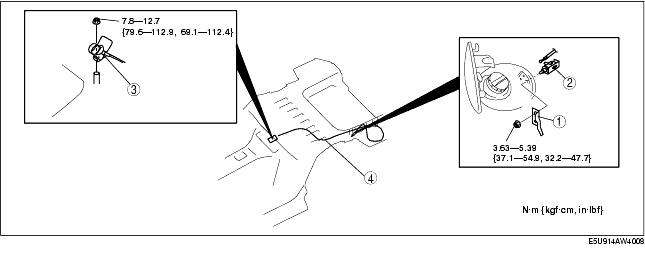

3. Remove in the order indicated in the table.

1
Lift spring
2
Fuel-filler lid opener
3
Fuel-filler lid opener lever
4
Fuel-filler lid opener cable

4. Install in the reverse order of removal.

5. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
