SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION

Except Power Retractable Hardtop

1. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)

(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(3) Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

(6) Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

2. Remove the fasteners.

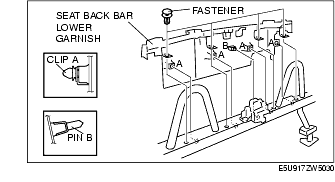

3. Slide the seat back bar lower garnish to the vehicle rear and detach clips A and pin B.

4. Remove the seat back bar lower garnish.

5. Install in the reverse order of removal.

Power Retractable hardtop

1. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)

(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(3) Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

(6) Seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

(8) Roof hook (See ROOF HOOK REMOVAL/INSTALLATION.)

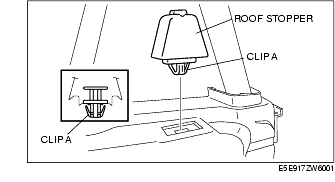

2. Remove the clip A.

3. Remove the roof stopper.

4. Remove the fasteners.

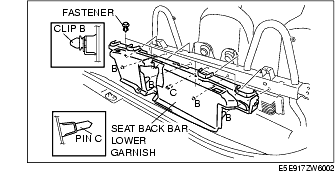

5. Slide the seat back bar lower garnish to the vehicle rear and detach clips B and pin C.

6. Remove the seat back bar lower garnish.

7. Install in the reverse order of removal.
