HEADLINER REMOVAL/INSTALLATION [DETACHABLE HARDTOP]

1. Remove the detachable hardtop.

2. Remove the following parts:

(1) B-pillar garnish. (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(2) Side lock. (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(3) B-pillar upper trim. (See B-PILLAR UPPER TRIM REMOVAL [DETACHABLE HARDTOP].)

(4) Male wedge cover. (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(5) Top lock cover. (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

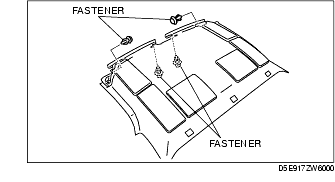

3. Remove the fasteners.

4. Pull the headliner outward and remove it.

5. Install in the reverse order of removal.
