DTC P0103 [L8, LF]

id0102b1803300

DTC P0103

MAF sensor circuit high input
DETECTION CONDITION
•  The PCM monitors the input voltage from the MAF sensor when the engine running. If the input voltage is above 4.9 V, the PCM determines that the MAF circuit has a malfunction.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
•  FREEZE FRAME DATA (Mode 2/Mode 12) is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  MAF/IAT sensor connector or terminals malfunction
•  PCM connector or terminals malfunction

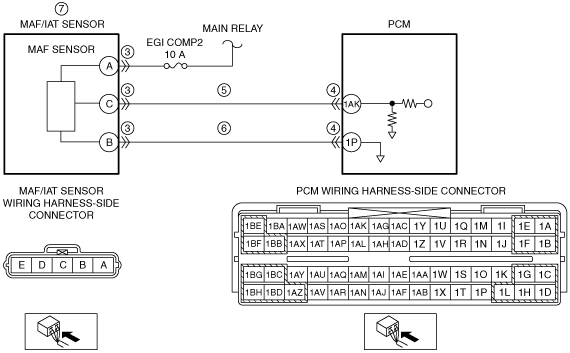

•  Short to power supply in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1AK
•  Open circuit in wiring harness between MAF/IAT sensor terminal B and PCM terminal 1P
•  MAF sensor malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA (MODE 12) HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA (Mode 12) been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA (Mode 12) on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT MAF/IAT SENSOR CONNECTOR AND TERMINALS
•  Turn the ignition switch off.
•  Disconnect the MAF/IAT sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 8.
No
Go to the next step.
4
INSPECT PCM CONNECTOR AND TERMINALS
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 8.
No
Go to the next step.
5
INSPECT MAF SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  PCM connector is disconnected.
•  Disconnect the MAF/IAT sensor connector.
•  Turn the ignition switch to the ON position. (engine off)
•  Measure the voltage between MAF/IAT sensor terminal C (wiring harness-side) and body ground.
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a short to power supply, then go to Step 8.
No
Go to the next step.
6
INSPECT MAF SENSOR GROUND CIRCUIT FOR OPEN CIRCUIT
•  MAF/IAT sensor and PCM connectors are disconnected.
•  Turn the ignition switch off.
•  Inspect for continuity between MAF/IAT sensor terminal B (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a short to ground, then go to Step 8.
No
Go to the next step.
7
INSPECT MAF SENSOR
•  Reconnect the MAF/IAT sensor connector.
•  Inspect the MAF sensor.
•  Is there any malfunction?
Yes
Replace the MAF/IAT sensor, then go to the next step.
(See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [L8, LF].)
No
Go to the next step.
8
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all the disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine and warm it up completely.
•  Perform the KOEO/KOER self test.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [L8, LF].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC troubleshooting.
(See DTC TABLE [L8, LF].)
No
DTC troubleshooting completed.
