1
|
INSPECT KEYLESS RECEIVER CONNECTOR AND TERMINALS
• Turn the ignition switch off.
• Disconnect the negative battery cable.
• Disconnect the keyless receiver connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
2
|
INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS
• Disconnect the keyless control module connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
3
|
INSPECT INSTRUMENT CLUSTER CONNECTOR AND TERMINALS
• Disconnect the instrument cluster connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
4
|
INSPECT WHEEL UNIT SIGNAL CIRCUIT FOR SHORT TO GROUND
• Keyless receiver, keyless control module and instrument cluster connectors are disconnected.
• Inspect for continuity between the following terminal (wiring harness-side) and body ground:
-
― Keyless control module terminal 3R
― Keyless control module terminal 3S
― Keyless control module terminal 3U
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to ground, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT WHEEL UNIT SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Keyless receiver, keyless control module and instrument cluster connectors are disconnected.
• Reconnect the negative battery cable.
• Turn the ignition switch to the ON position.
• Measure the voltage at the following terminal (wiring harness-side):
-
― Keyless control module terminal 3R
― Keyless control module terminal 3S
― Keyless control module terminal 3U
• Is there any voltage?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT WHEEL UNIT SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Keyless receiver, keyless control module and instrument cluster connectors are disconnected.
• Turn the ignition switch to off position.
• Disconnect the negative battery cable.

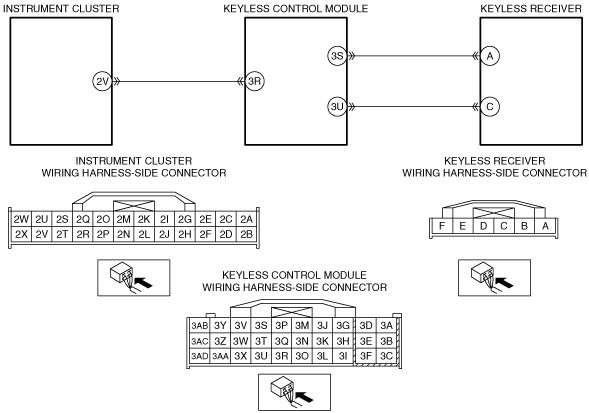

• Inspect for continuity between the following terminals (wiring harness-side):
-
― Keyless control module terminal 3R—Instrument cluster terminal 2V
― Keyless control module terminal 3S—Keyless receiver terminal A
― Keyless control module terminal 3U—Keyless receiver terminal C
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
|
|
7
|
INSPECT KEYLESS RECEIVER
• Reconnect the keyless receiver, keyless control module and instrument cluster connectors.
• Inspect the keyless receiver.
• Is there any malfunction?
|
Yes
|
Replace the keyless receiver, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
8
|
INSPECT KEYLESS CONTROL MODULE
• Inspect the keyless control module.
• Is there any malfunction?
|
Yes
|
Replace the keyless control module, then go to the next step.
|
|
No
|
Go to the next step.
|
|
9
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect the disconnected connectors.
• Reconnect the negative battery cable.
• Perform the Clearing DTCs Procedure.
• Turn the ignition switch to the ON position and wait for 30 s or more.
• Perform the Reading DTCs Procedure.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
If the malfunction recurs:
• Replace the instrument cluster, then go to the next step.
|
|
No
|
Go to the next step.
|
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Drive the vehicle at a speed of 25 km/h {15.5 mph} or more for 10 min or more.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
