FRONT LOWER ARM REMOVAL/INSTALLATION

id021300800600

Caution

•  Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled while servicing the vehicle.

1.  When working on the left side of the vehicle, disconnect the front auto leveling sensor link. (Vehicle with discharge headlight system) (See FRONT AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT.)

e5u213si9001

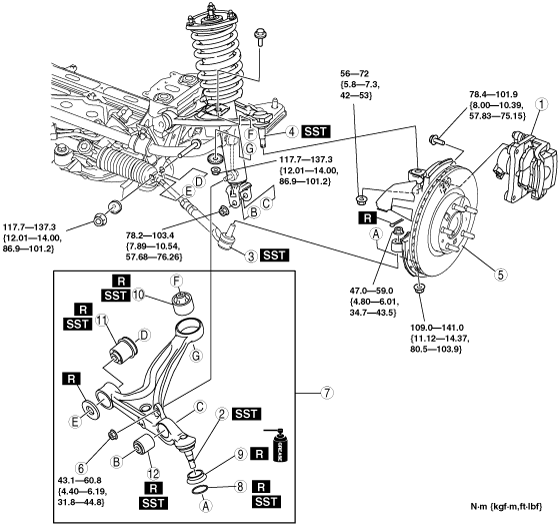

1	Brake caliper component (See Brake Caliper Component Removal Note.)
2	Front lower arm ball joint (See Front Lower Arm Ball Joint Removal Note.)
3	Tie-rod end (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)
4	Front upper arm ball joint (See Upper Arm Ball Joint Removal Note.)
5	Front hub, steering knuckle component
6	Stabilizer control link nut (front lower arm side)
7	Front lower arm
8	Clip (See Clip Installation Note.)
9	Dust boot
10	Bushing (rear side) (See Bushing (Rear Side) Removal Note.) (See Bushing (Rear Side) Installation Note.)
11	Bushing (front side) (See Bushing (Front Side) Removal Note.) (See Bushing (Front Side) Installation Note.)
12	Bushing (shock absorber lower side connecting part) (See Bushing (Shock Absorber Lower Side Connecting Part) Removal Note.) (See Bushing (Shock Absorber Lower Side Connecting Part) Installation Note.)

Brake Caliper Component Removal Note

1.  Remove the brake caliper component and suspend it out of the way using a cable.

Front Lower Arm Ball Joint Removal Note

1.  Disconnect the front lower arm ball joint from the steering knuckle using the SST.

amxzzw00000071

Note

•  When removing the front lower arm ball joint, the steering knuckle bushing may also come off. If it comes off, replace the steering knuckle.

Upper Arm Ball Joint Removal Note

1.  Loosen the bolts on the vehicle side.

2.  Disconnect the upper arm ball joint using the SST.

amxzzw00000072

Bushing (Rear Side) Removal Note

Caution

•  Be careful not to damage the front lower arm. If it is damaged, replace it.

1.  Mark the front upper arm as shown in the figure.

e5u213zw5006

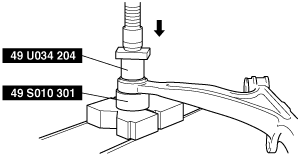

2.  Remove the bushing using the SSTs.

amxzzw00000073

Bushing (Front Side) Removal Note

Caution

•  Be careful not to damage the front lower arm. If it is damaged, replace it.

1.  Cut off the stopper plate rubber using a razor.

amxzzw00000074

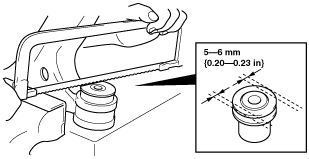

2.  Cut off 5—6 mm {0.20—0.23 in} from each side of the knob end of the bushing using a hacksaw.

chu0213w010

3.  Remove the bushing using the SSTs.

e5u213zw5020

Bushing (Shock Absorber Lower Side Connecting Part) Removal Note

Caution

•  Be careful not to damage the front lower arm. If it is damaged, replace it.

1.  Remove the bushing using the SSTs.

amxzzw00000075

Bushing (Shock Absorber Lower Side Connecting Part) Installation Note

1.  Press the bushing in using the SSTs.

chu0213w011

Bushing (Front Side) Installation Note

1.  Press the bushing in using the SSTs.

chu0213w023

2.  Insert the stopper plate rubber into the inner pipe of the bushing (front side).

chu0213w024

Bushing (Rear Side) Installation Note

1.  Align the marks placed during removal and install the bushing.

e5u213zw5007

2.  Press the bushing in using the SSTs.

chu0213w014

Clip Installation Note

1.  Wipe the grease off the ball joint stud.

2.  Fill the inside of the new dust boot with grease.

3.  Install the dust boot to the ball joint.

4.  Install the clip using the SST.

amxzzw00000076

5.  Verify that the clip is installed securely to the groove.

6.  Wipe off any excess grease.

Front Lower Arm Installation Note

1.  Install the front lower arm rear side bushing part horizontally.

2.  Install the front lower arm front side bushing part.
