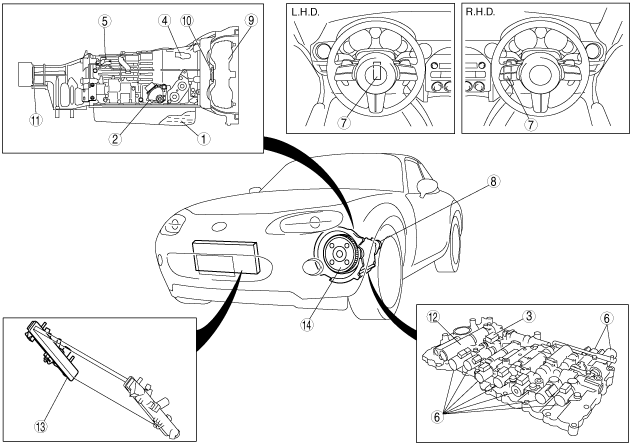

AUTOMATIC TRANSMISSION LOCATION INDEX [SJ6A-EL]

id051311249000

amxzzw00000219

1	Automatic transmission fluid (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)
2	Transmission range (TR) switch (See TRANSMISSION RANGE (TR) SWITCH INSPECTION [SJ6A-EL].) (See TRANSMISSION RANGE (TR) SWITCH REMOVAL/INSTALLATION [SJ6A-EL].) (See TRANSMISSION RANGE (TR) SWITCH ADJUSTMENT [SJ6A-EL].)
3	Transmission fluid temperature (TFT) sensor (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR INSPECTION [SJ6A-EL].) (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [SJ6A-EL].)
4	Turbine sensor (See TURBINE SENSOR INSPECTION [SJ6A-EL].) (See TURBINE SENSOR REMOVAL/INSTALLATION [SJ6A-EL].)
5	Vehicle speed sensor (VSS) (See VEHICLE SPEED SENSOR (VSS) INSPECTION [SJ6A-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [SJ6A-EL].)
6	Solenoid valve (See SOLENOID VALVE INSPECTION [SJ6A-EL].)
7	TCM (See TCM INSPECTION [SJ6A-EL].) (See TCM REMOVAL/INSTALLATION [SJ6A-EL].)
8	Automatic transmission (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)
9	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION [SJ6A-EL].)
10	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT [SJ6A-EL].)
11	Oil seal (extension housing) (See OIL SEAL (EXTENSION HOUSING) REPLACEMENT [SJ6A-EL].)
12	Control valve body (See CONTROL VALVE BODY REMOVAL [SJ6A-EL].) (See CONTROL VALVE BODY INSTALLATION [SJ6A-EL].)
13	Oil cooler (See OIL COOLER FLUSHING [SJ6A-EL].) (See OIL COOLER REMOVAL/INSTALLATION [SJ6A-EL].) (See OIL COOLER DISASSEMBLY/ASSEMBLY [SJ6A-EL].)
14	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [SJ6A-EL].)
